capacity:
80000 Btu
category:
Gas Furnace
depth:
28 in
height:
33.5 in
manufacturer:
Daikin
mpn:
GMES800803BN
seer:
0.8
subcategory:
80% AFUE
type:
80000 BTU
voltage:
60 Hz/1 Ph/115 V
width:
17-1/2 in
Product Description

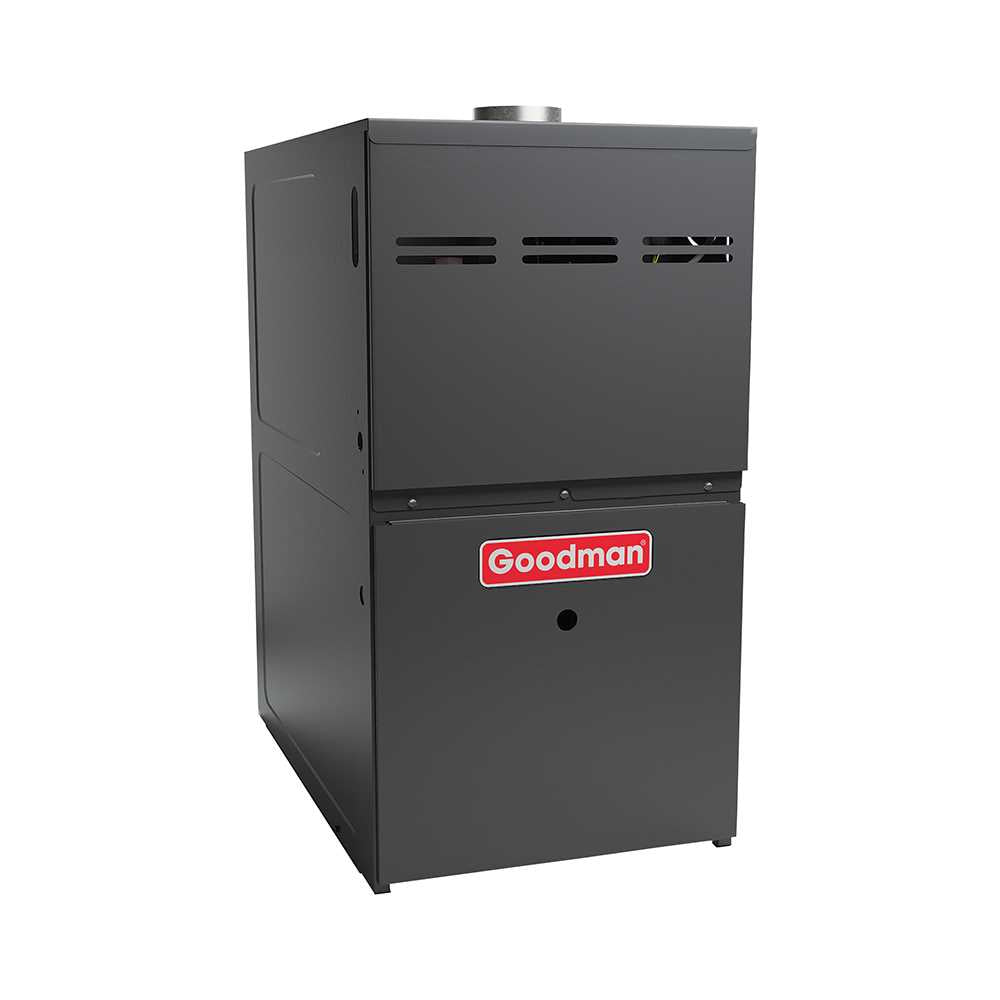

Daikin - GMES800803BN Goodman 80% AFUE GMES80 Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 80,000 BTUH/H,
Specifications :
- Heavy-duty aluminized-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Single-Stage gas Valve
- Single-speed inducer draft blower
Cabinet Features :
- Multi-position installation: upflow, horizontal left or right
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Foil faced insulated heat exchanger section
- Bottom or side return air applications
- Bottom or side return air applications
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth28 in
Unit Height33.5 in
Unit Width17-1/2 in
Efficiency0.8
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace 80% AFUE
Model Efficiency0.8
FamilyGMES80
Unit TypeIndoor
Min. Circuit8.7 A
Motor Speed TypeMulti Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
Blower Motor RPM1200 r/min
AFUE80 %
Airflow Rate High Heating1234 ft³/min
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity64,000
