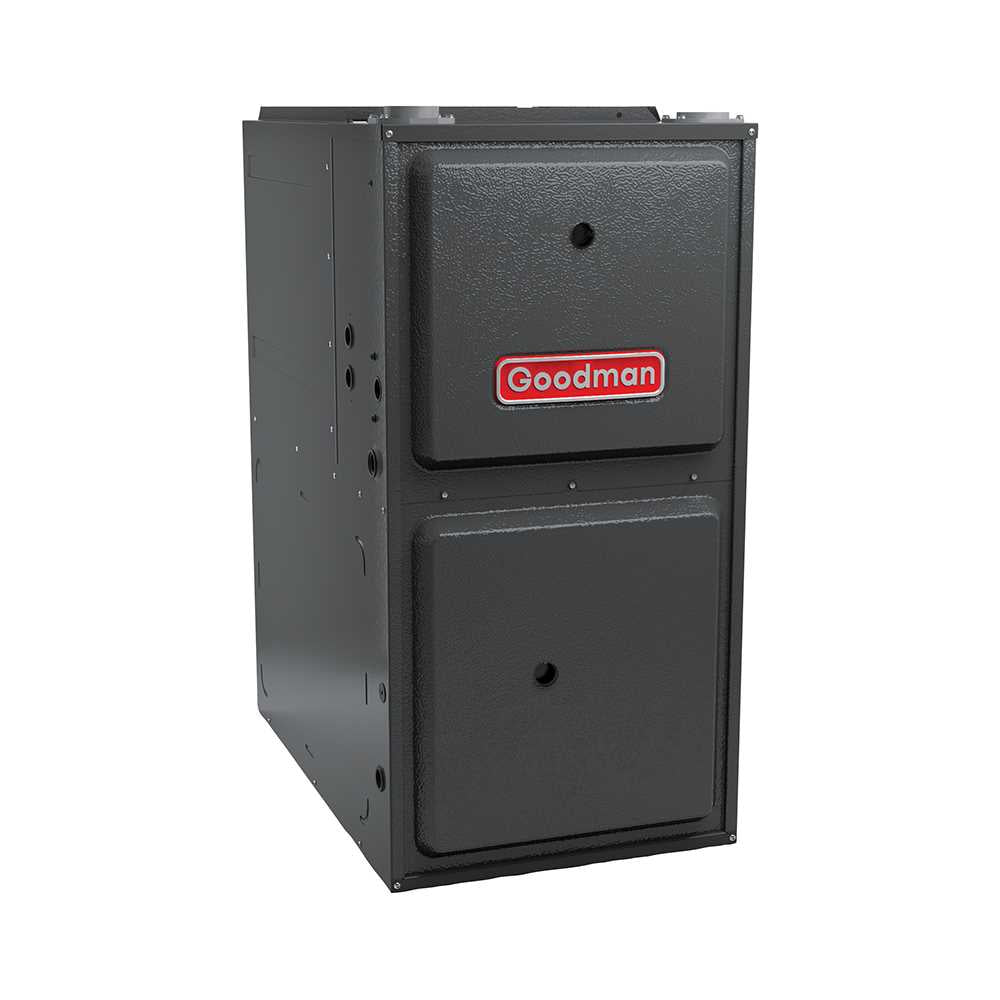

Daikin GMES960803BN Goodman 96% AFUE Gas Furnace Multi Speed ECM, Single Stage 80000 BTU

Daikin GMES960803BN Goodman 96% AFUE Gas Furnace Multi Speed ECM, Single Stage 80000 BTU

Dropship

SKU SKU:kpi032-GMES960803BN

Regular price $1,456.00 USD
Regular price Sale price $1,456.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product details

capacity: 80000 Btu
category: Gas Furnace
depth: 29 in
height: 34-1/2 in
manufacturer: Daikin
mpn: GMES960803BN
seer: 0.96
subcategory: 96% AFUE
type: 80000 BTU
voltage: 60 Hz/1 Ph/115 V
weight: 114
width: 17-1/2 in

Product Overview

Goodman 96% AFUE GMES96 Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 80000 BTUH/H,

Specifications :

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel sloped secondary heat exchanger
  • Silicon Nitride igniter
  • Color-coded low-voltage terminals
  • Multi-speed ECM blower motor with continuous fan speed
  • Fault code LED Output
  • AHRI Certified - ETL Listed
  • Energy Star
  • Single-Stage gas Valve
  • Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  • 1 Low constant fan speed circulates air throughout the home
  • 1 High static
  • 1 All models comply with California Ultra-Low N0x 14 ng/J

Cabinet Features :

  • Multi-position installation: upflow, horizontal left or right
  • Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
  • Easy to install top venting with optional side vent
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (Qleak) less than or equal to 2%
  • Fully insulated heat exchanger and blower section
  • Bottom or side return air applications
  • Heavy-gage steel cabinet with durable finish

Additional Information

BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth29 in
Unit Height34-1/2 in
Unit Width17-1/2 in
Efficiency0.96
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
Model Efficiency0.96
FamilyGMES96
Unit TypeIndoor
Unit Weight114 lb
Min. Circuit10.3 A
Motor Speed TypeMulti Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
Blower Motor RPM1200 r/min
AFUE96 %
Airflow Rate High Heating1414 ft³/min
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity76880
