capacity:
60000 Btu
category:
Gas Furnace
depth:
28 in
height:
33.3 in
manufacturer:
Daikin
mpn:
GMVS800604BU
subcategory:
80% AFUE
type:
60000 BTU
voltage:
60 Hz/1 Ph/115 V
weight:
112
width:
17-1/2 in
Product Description

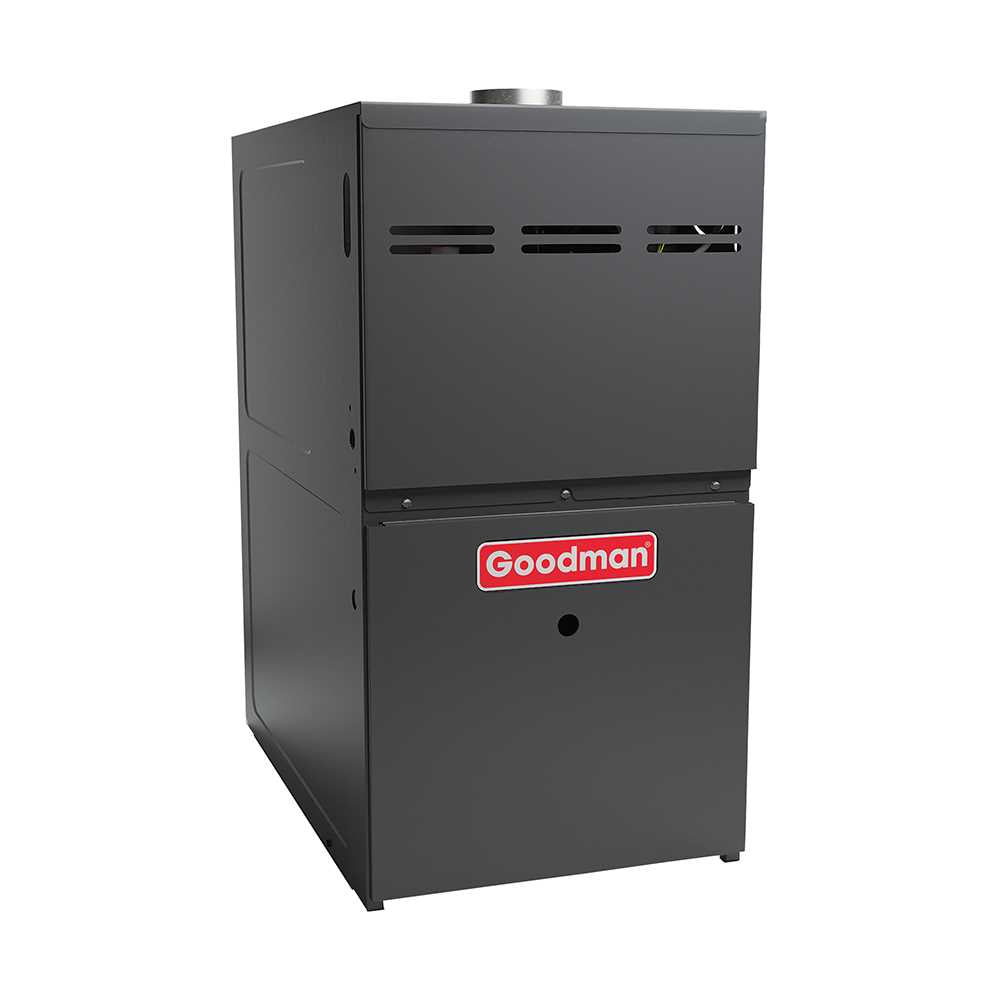

Daikin - GMVS800604BU Goodman 80% AFUE GMVS80 Gas Furnace Variable Speed ECM, Single Stage, , 60000 BTUH/H, Ultra-Low NOx ComfortBridge Technology compatible
Specifications :
- Heavy-duty stainless-steel tubular heat exchangerSingle-stage gas valveDurable Silicon Nitride igniter Self-diagnostic control board with constantmemory fault code history output to a LEDAll models comply with California 14 ng/Jultra Low NOx emissions standardFor installation in California™s South Coast AirQuality Management District (SCAQMD) only.AHRI Certified
- ETL Listed
Cabinet Features :
- Multi-position installation: upflow, horizontal left or right Convenient left or right connection for gas and electrical service Cabinet air leakage (Qleak) less than or equal to 2% Bottom or side return air applications Heavy-gage steel cabinet with durable finish
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth28 in
Unit Height33.3 in
Unit Width17-1/2 in
Family DescriptionComfortBridgeâ¢-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
FamilyGMVS80
Unit TypeIndoor
Unit Weight112 lb
Min. Circuit11.6 A
Motor Speed TypeVariable Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
Blower Motor RPM1200 r/min
AFUE80 %
Airflow Rate High Heating1760 ft³/min
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity48000
NOX Burner TypeUltra-Low NOx
