category:
Goodman Packaged Heat Pump
depth:
34 in
height:
27.5 in
manufacturer:
Daikin
mpn:
GPCH33641
seer:
13.4 SEER2
subcategory:
AC Gas Electric
voltage:
60 Hz/1 Ph/208~230 V
weight:
375
width:
66 in
Product Description

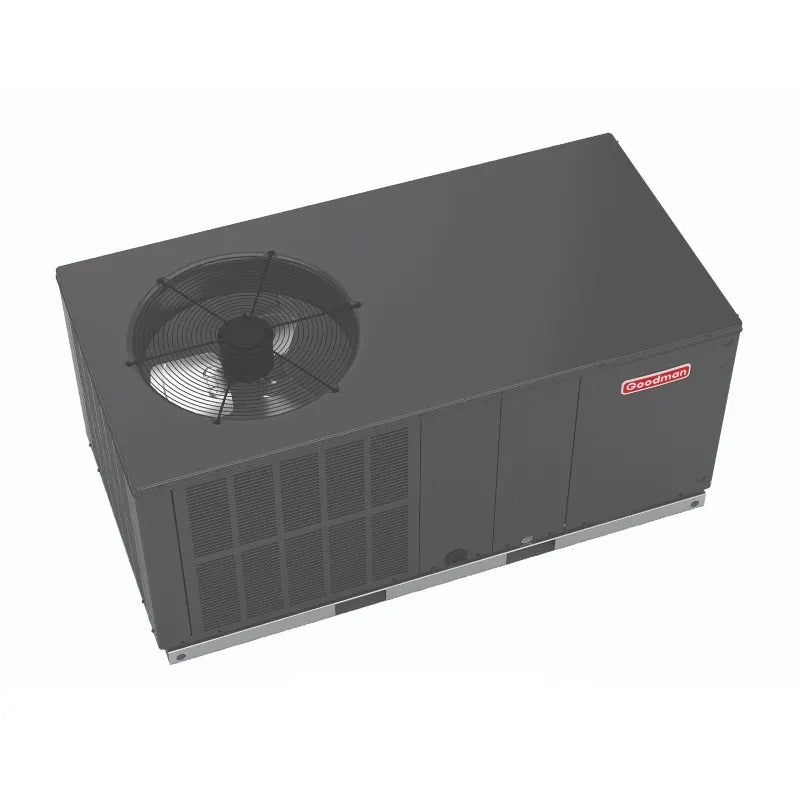

Daikin - GPCH33641 Goodman GPCH3 Packaged Air Conditioner 13.4 SEER2, Single Stage, Multi Speed ECM, 3 Ton
Specifications :
- Energy-efficient compressor
- Multi-speed ECM indoor blower motor
- Quiet horizontal discharge
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- 5 kW to 20 kW electric heat kit available as a field-installed option
- AHRI Certified
- ETL Listed
Cabinet Features :
- Heavy-gauge galvanized-steel cabinet with attractive Nickel Gray powder-paint finish
- Compressor sound blanket
- Cabinet air leakage less than 0% at 0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Fully insulated blower compartment has convenient access panels
- Louvered condenser coil protection
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth34 in
Unit Height27.5 in
Unit Width66 in
Efficiency13.4 SEER2
Family DescriptionPackaged Air Conditioner, 13.4 SEER2, 2 to 5 Tons
Model Efficiency13.4 SEER2
FamilyGPCH3
RefrigerantR-410A
Tonnage3 tons
Unit TypeOutdoor
Unit Weight375 lb
Airflow Rate High Cooling1200 ft³/min
Max. Voltage253 V
Min. Circuit24.4 A
Min. Voltage197 V
Motor Speed TypeMulti Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
Compressor StagesSingle Stage
Compressor TypeScroll
Indoor Blower FLA3.8 A
Blower Motor RPM1400 r/min
Cooling Capacity Rated35600 Btu/H
Airflow Rate High Heating1200 ft³/min
