category:
Goodman Packaged Heat Pump
depth:
34 in
height:
32.5 in
manufacturer:
Daikin
mpn:
GPHH34241
seer:
14 SEER
subcategory:
AC Gas Electric
voltage:
60 Hz/1 Ph/208~230 V
weight:
375
width:
66 in
Product Description

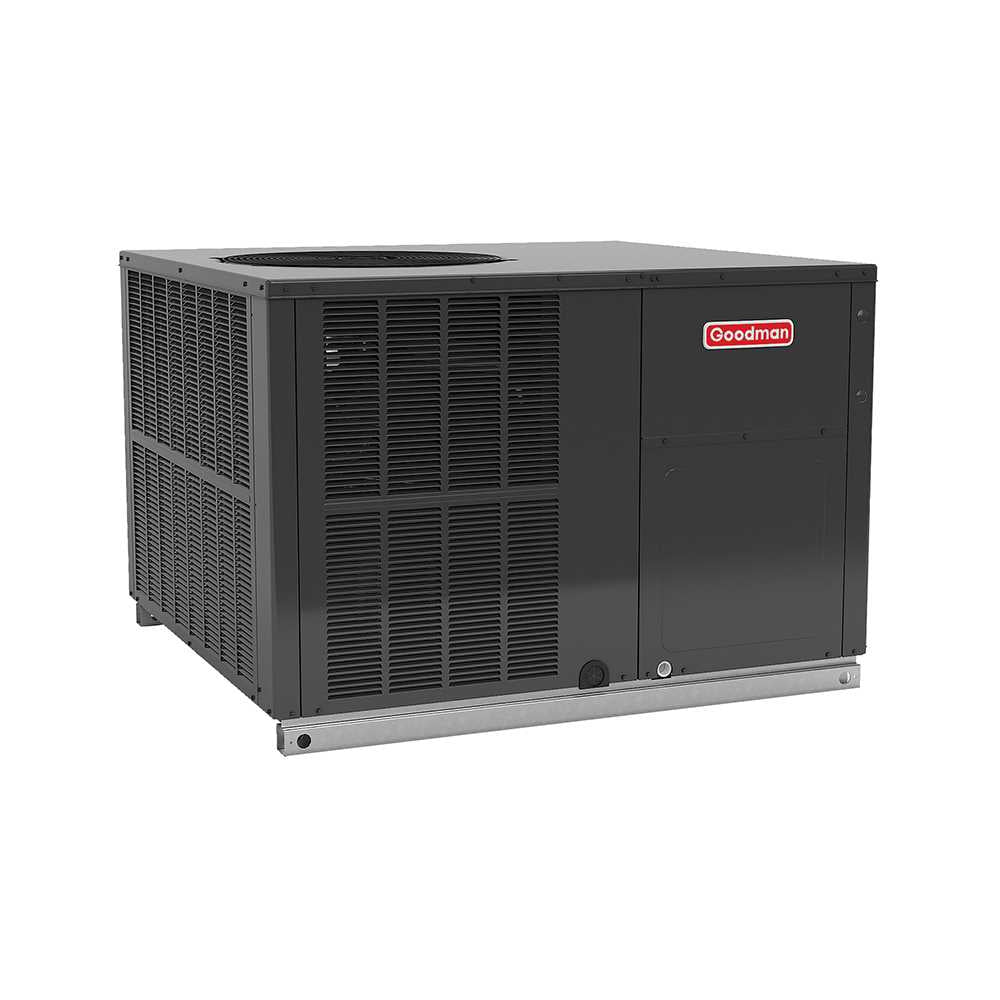

Daikin - GPHH34241 Goodman GPHH3 Packaged Heat Pump 14 SEER, Single Stage Cooling, Multi Speed ECM, 3.5 Ton
Specifications :
- Energy-efficient compressor
- ECM indoor blower motor
- Quiet horizontal discharge
- Copper tube/aluminum fin coil
- Totaly enoclosed, permanently lubricated condenser fan motor
- Fully charged system
- Eletric heat kit available as a field-installed option
- AHRI Certified
- ETL Listed
Cabinet Features :
- Heavy-gauge, galvenized-steel cabinet with Architectural Gray power-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cavinate air leakage requirements when tested in accordance with ASHRAE standard 193
- Louvered condenser coil protection
- One footprint for all tonnages
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth34 in
Unit Height32.5 in
Unit Width66 in
Efficiency14 SEER
Family DescriptionPackaged Heat Pump 2 to 5 Tons Up to 14 SEER
Model Efficiency14 SEER
FamilyGPHH3
RefrigerantR-410A
Tonnage3.5 tons
Unit TypeOutdoor
Unit Weight375 lb
Airflow Rate High Cooling1300 ft³/min
Max. Voltage253 V
Min. Circuit26.1 A
Min. Voltage197 V
Motor Speed TypeMulti Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
Compressor StagesSingle Stage
Compressor TypeScroll
Indoor Blower FLA3.8 A
Blower Motor RPM1400 r/min
Cooling Capacity Rated39000 Btu/H
Airflow Rate High Heating1300 ft³/min
Heating Capacity Rated37200 Btu/H
