category:
Modular Blowers
depth:
21 in
height:
26 in
manufacturer:
Daikin
mpn:
MBVC1200AA-1
subcategory:
1.5-3.0 Ton
voltage:
60 Hz/1 Ph/208-230 V
weight:
67
width:
17-1/2 in
Product Description

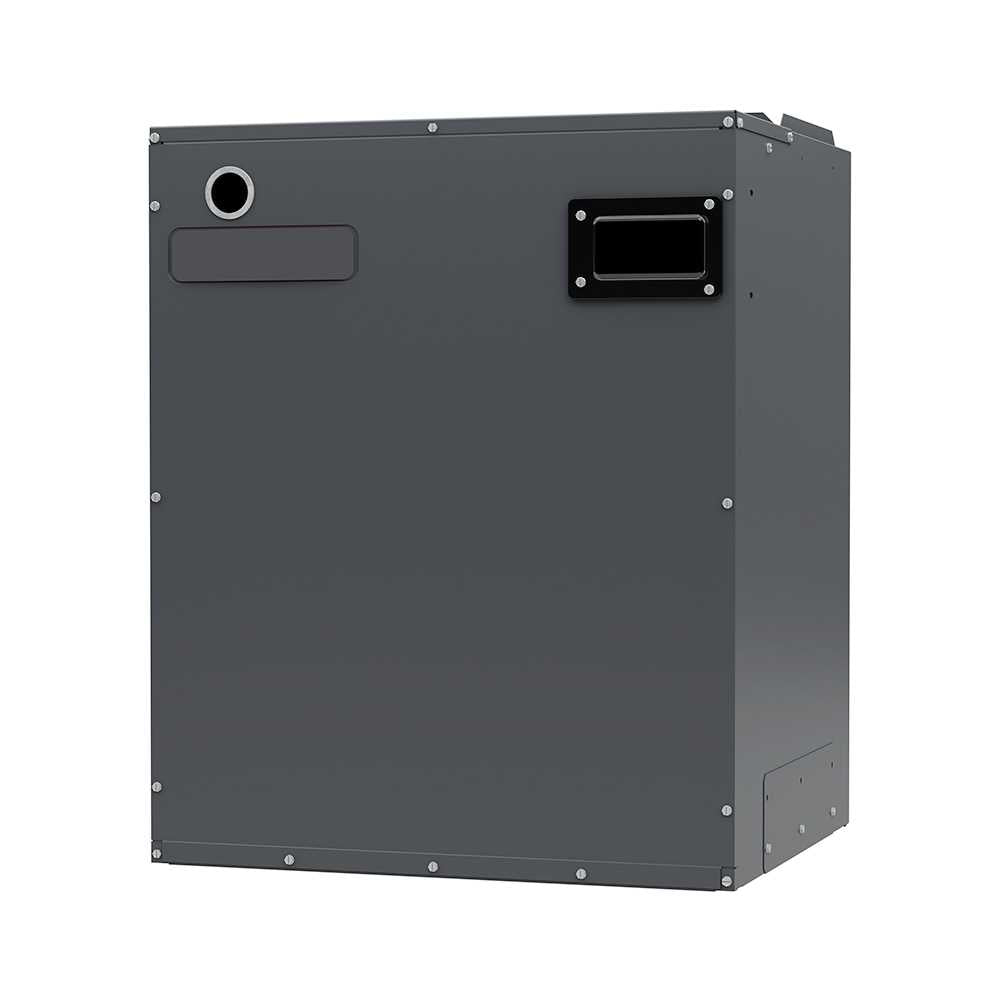

Daikin - MBVC1200AA-1 MBVC Ducted Multi-position Modular Blower, Variable Speed ECM Motor, 1200 CFM, 17-1/2 in Cabinet, One+ Smart Thermostat compatible
Specifications :
- Variable-speed ECM blower motor
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Advanced configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- 3 kW 21 kW electric heat kits
- Blower section usable as electric heater
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Cabinet air leakage less than 2% at 0 inch H20 when tested in accordance with ASHRE standard 193
- Cabinet air leakage less than 4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
- AHRI certified
- ETL listed
Cabinet Features :
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Cabinet air leakage less than 2% at 0 inch H20 when tested in accordance with ASHRE standard 193
- Cabinet air leakage less than 4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
Additional Information
BrandCorporate
Prop65 Label RequiredTRUE
Unit Depth21 in
Unit Height26 in
Unit Width17-1/2 in
Family DescriptionMulti-Position, Variable-Speed ECM-Based, Modular Blower Communicating
FamilyMBVC
RefrigerantR-410A
Unit TypeIndoor
Unit Weight67 lb
Airflow Rate High Cooling1200 ft³/min
Max. Voltage253 V
Min. Circuit4.3 A
Min. Voltage197 V
Motor Speed TypeVariable Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
