Product details
category: Modular Blowers
manufacturer: Daikin
mpn: MBVC1201AA-1
subcategory: 1.5-3.0 Ton
voltage: 60 Hz/1 Ph/208-230 V
Product Overview

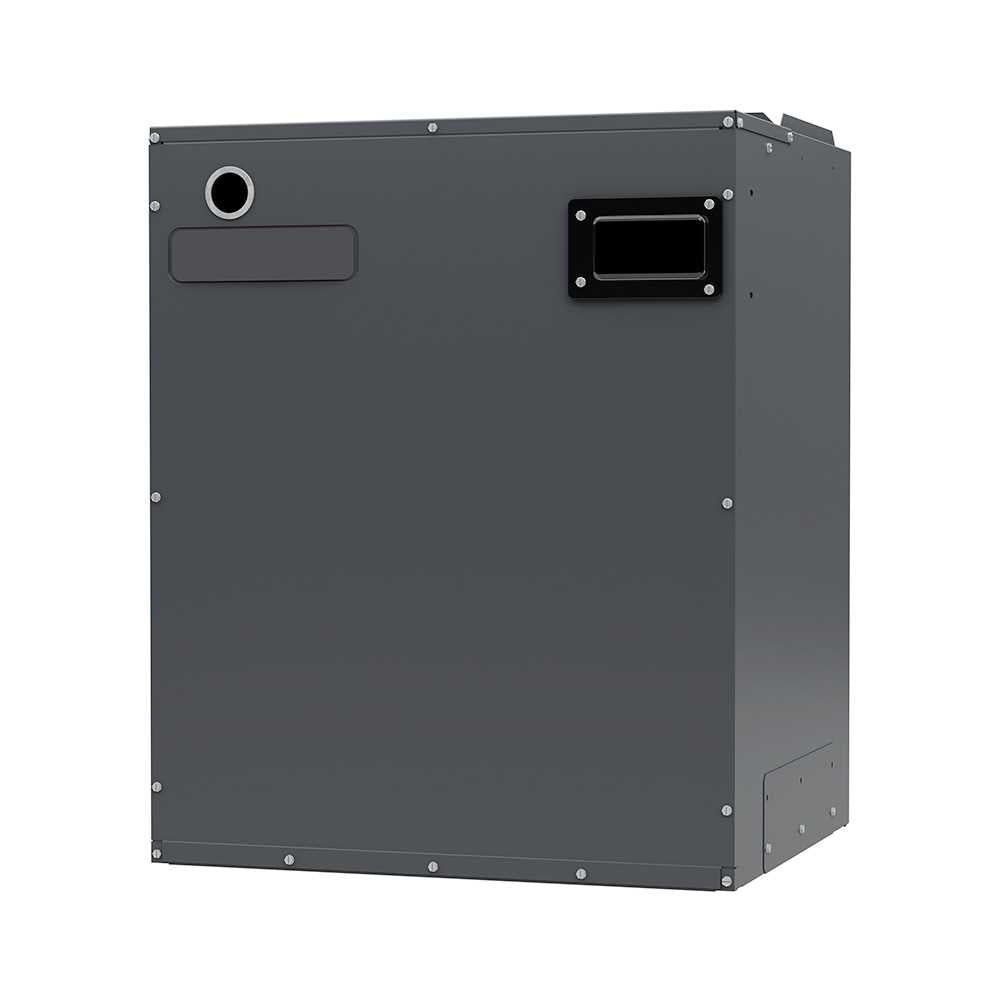

MBVC Ducted Multi-position Modular Blower, Variable Speed ECM Motor, 1200 CFM, Cabinet, ComfortBridge Technology compatible
Specifications :
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridge„¢ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- Advanced configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- 3 kW 21 kW electric heat kits
- 1 Blower section usable as electric heater
- 1 AHRI certified
- 1 ETL listed
Cabinet Features :
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Cabinet air leakage less than 2% at 0 inch H20 when tested in accordance with ASHRE standard 193
- Cabinet air leakage less than 4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
Additional Information
BrandCorporate
Prop65 Label RequiredTRUE
Family DescriptionMulti-Position, Variable-Speed ECM-Based, Modular Blower ComfortBridge⢠Compatible
FamilyMBVC_1
Unit TypeIndoor
Airflow Rate High Cooling1200 ft³/min
Max. Voltage253 V
Min. Voltage197 V
Motor Speed TypeVariable Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
