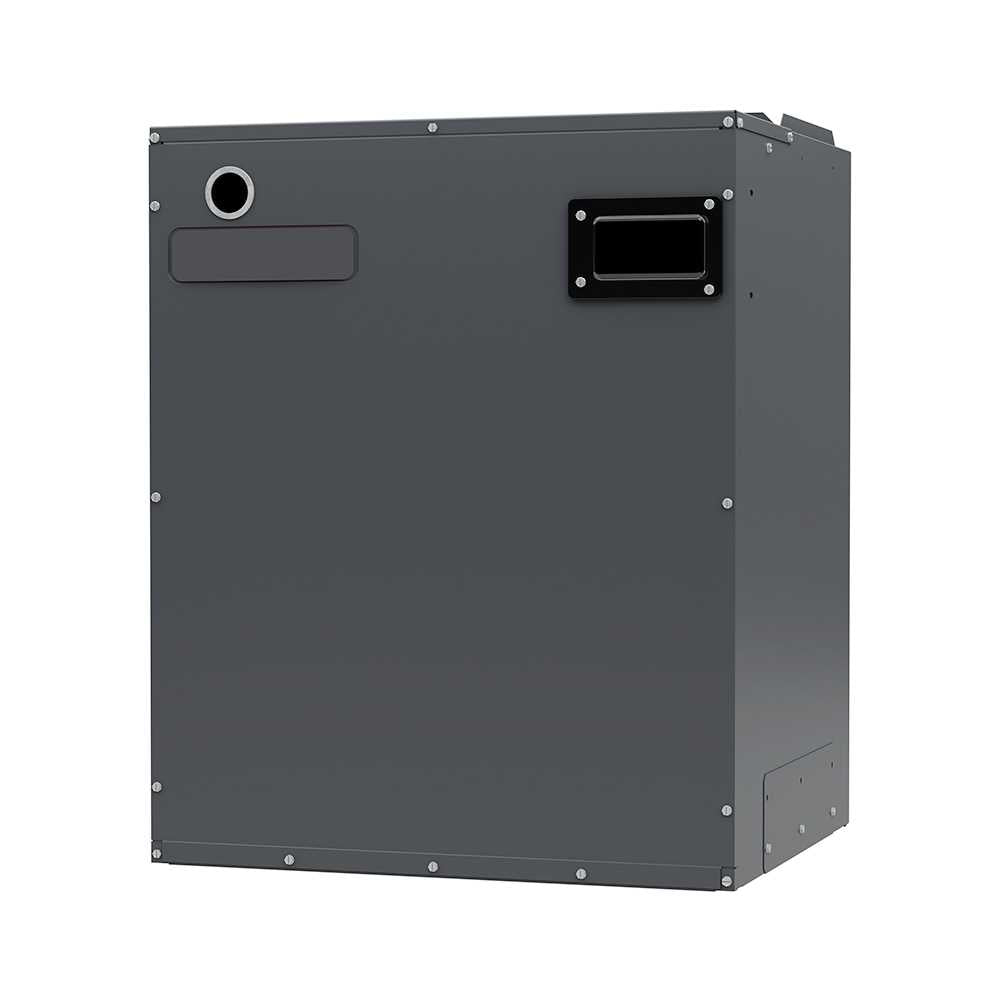

Daikin MBVC1601AA-1 4-Ton 1600 CFM 80 lb Modular Blower Air Handler, Variable Speed ECM Motor

Product Description

Daikin - MBVC1601AA-1 MBVC Ducted Multi-position Modular Blower, Variable Speed ECM Motor, CFM, Cabinet, ComfortBridge Technology compatible

Specifications :

• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge„¢ technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
• Advanced configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• 3 kW 21 kW electric heat kits
• 1 Blower section usable as electric heater
• 1 AHRI certified
• 1 ETL listed

Cabinet Features :

• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Cabinet air leakage less than 2% at 0 inch H20 when tested in accordance with ASHRE standard 193
• Cabinet air leakage less than 4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
