Delta Breez ELT80-110H BreezElite Exhaust Fan with Humidity Sensor and High Speed Adjustable 80/110 CFM

Delta Breez ELT80-110H BreezElite Exhaust Fan with Humidity Sensor and High Speed Adjustable 80/110 CFM

Dropship

SKU SKU:kpi115-ELT80-110H

Regular price $175.28 USD
Regular price Sale price $175.28 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: HVAC Supplies
country_of_origin: USA
depth: 10.75
height: 7.875
manufacturer: Delta Breez
mpn: ELT80-110H
subcategory: BreezElite Fans
type: Ventilation Fan
upc: 885917003272
weight: 6.6
width: 10.75

Product Description

Delta Breez ELT80-110H - The Delta BreezElite ELT80-110H, an ENERGY STAR® qualified fan with a humidity sensor, is ideal for room-side installation. It features installer-friendly pocket mounting brackets, adjustable high-speed options, quiet and energy-efficient operation rated at 80 or 110 CFM, and exceeds Energy Star Most Efficient standards.

Innovative brushless DC motor design for long life, low noise, and low power consumption

The ELT80-110H has been awarded ENERGY STAR® qualification, featuring a Brushless DC Motor engineered to run continuously for a minimum of 70,000 hours. It boasts an airflow rating of 110 CFM and a loudness rating of 0.7 Sones at 0.1” static pressure, certified by the Home Ventilating Institute (HVI). The fan operates with a power consumption of 10.3 Watts and achieves an efficiency rating of 10.6 CFM/Watt at 0.1” static pressure. Additionally, it includes motor lock protection and self-compensating motor speed to maintain intended airflow when encountering static pressure. The ELT80-110H is UL and cUL listed for use in tub/shower enclosures when connected to GFCI-protected branch circuit wiring.

Features

  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • Perfectly quiet operation at 0.5 sones (80 CFM) and 0.7 sones (110 CFM) with a 6-inch duct
  • Adjustable high speed 80 CFM or 110 CFM
  • Allows fan to operate in full speed mode or humidity control mode by manual switch
  • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 50 or 80 CFM)
  • Adjustable humidity set points between ~50% to ~80% RH
  • Includes 6" to 4" duct reducer
  • Energy efficiency at 10.6 CFM/Watt

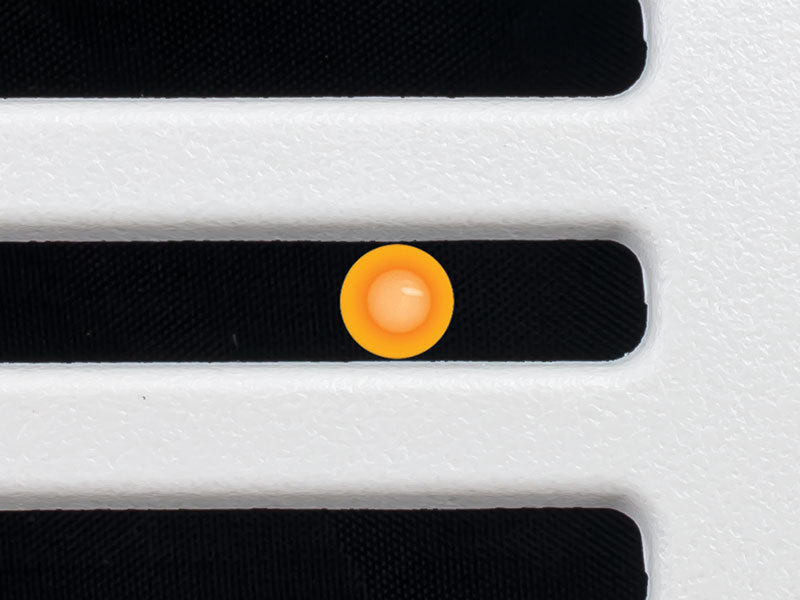

  • Blue and amber LED indicator lights to show humidity sensor and full speed modes
  • Annual energy cost for 24/7 operation is approximately $7.36* (80 CFM) or $10.83* (110 CFM)

ELT80-110H - Fan with Humidity Sensor and High Speed Adjustable 80/110 CFM (6" Duct Standard)

Additional Information

Fan SpeedContinuous Low Speed, Full Speed
Static Pressure0.1, 0.25
Air Flow (CFM)50, 32, 80, 59, 80, 59, 110, 90
Sones<0.3, 0.8, 0.5, 0.9, 0.5, 0.9, 0.7, 1
Power (W)5, 6, 7, 9, 7, 9, 10.3, 13
Efficiency (CFM/Watts)10, 5.3, 11.4, 6.5, 11.4, 6.5, 10.6, 6.9
Current (Amps)0.27 Max.
Power Rating (V/Hz)120 / 60

ELT80-110H - Fan with Humidity Sensor and High Speed Adjustable 80/110 CFM (4" Duct Standard)

Additional Information

Fan SpeedContinuous Low Speed, Full Speed
Static Pressure0.1, 0.25
Air Flow (CFM)50, 32, 80, 63, 80, 63, 110, 92
Sones0.5, 1, 0.8, 1.3, 0.8, 1.3, 1.2, 2
Power (W)5, 6, 8, 9.5, 8, 9.5, 12.5, 14
Efficiency (CFM/Watts)10, 5.3, 10, 6.6, 10, 6.6, 8.8, 6.5
Current (Amps)0.27 Max.
Power Rating (V/Hz)120 / 60
