category:
HVAC Supplies
country_of_origin:
USA
depth:
9.375
height:
5.75
manufacturer:
Delta Breez
mpn:
ITG100
subcategory:
BreezIntegrity Fans
type:
Ventilation Fan
upc:
885917002848
weight:
6.61
width:
10.75
Product Description

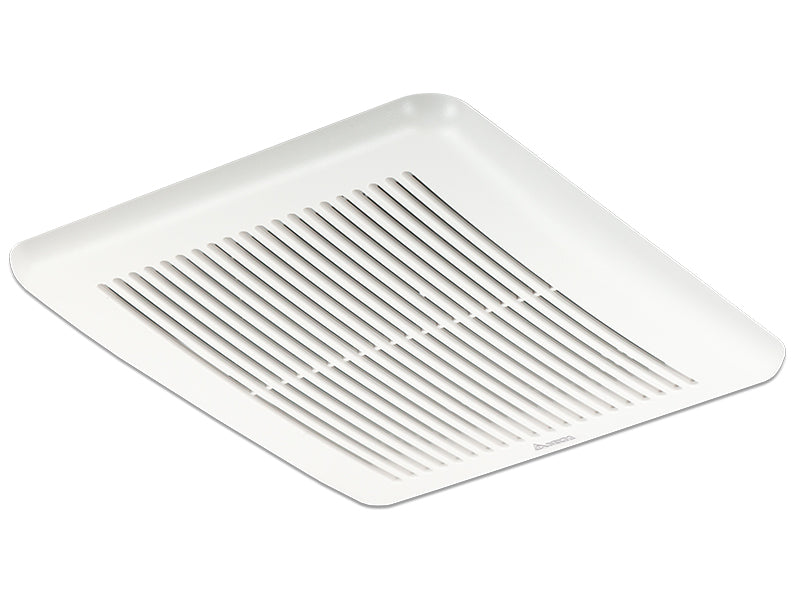

Delta Breez - ITG100 Delta Breez ITG100 - The Builder’s Choice for Green Construction.
ITG100 has been ENERGY STAR qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 100 CFM and loudness rating of 1.5 Sones at 0.1" static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 17.0 Watts with efficiency rating of 7.6 CFM/Watts. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring. Available in contractor packs.
Features
- ENERGY STAR® qualified with DC Motor technology
- Quiet operation at 1.5 Sones
- ITG100 is UL listed for both ceiling-mount and wall-mount installation
- Compact housing for easy retrofit and replacement of older bath fans
- UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
- Energy efficiency at 7.6 CFM/Watt
- Annual energy cost for 24/7 operation is approximately $17.88*
ITG100 - 100 CFM Fan
Additional Information
Static Pressure (inches w.g.)0.1, 0.25
Air Flow (CFM)100, 85
Sones1.5, 2
Power Consumption (Watts)17, 21
Energy Efficiency (CFM/Watts)7.6, 5.3
Current (Amps)0.33 Max
Power Rating (V/Hz)120/60
NoteProject Pack Components Available ITG-A2 (housing) and ITG100-B (motor grille)
