Delta Breez

Delta Breez ITG100RLED BreezIntegrity 100 CFM Fan/LED Edge-Lit, Flat Round Panel

Delta Breez ITG100RLED BreezIntegrity 100 CFM Fan/LED Edge-Lit, Flat Round Panel

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17

SKU SKU:kpi115-ITG100RLED

Regular price $148.58 USD
Regular price Sale price $148.58 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: HVAC Supplies
country_of_origin: USA
height: 5.75
manufacturer: Delta Breez
mpn: ITG100RLED
subcategory: BreezIntegrity Fans
type: Ventilation Fan
upc: 885917003449
weight: 8.2

Product Description

Delta Breez - ITG100RLED Delta Breez ITG100RLED - The Builder’s Choice for Green Construction.

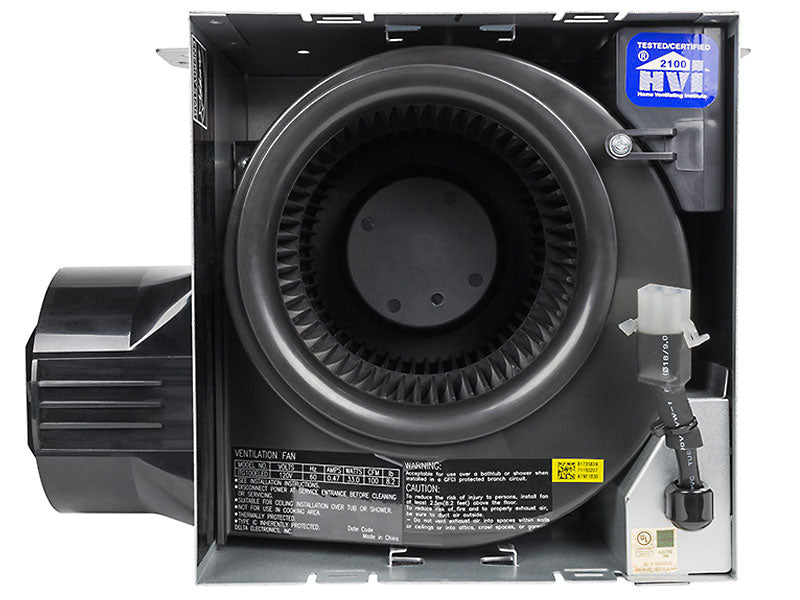

Delta BreezIntegrity ITG100RLED is ENERGY STAR® qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 100 CFM and loudness rating of 1.5 sones at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 17.0 Watts with efficiency rating of 7.5 CFM/Watts at 0.1” static pressure; motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

  • ENERGY STAR® qualified with brushless DC motor technology
  • Quiet operation at 1.5 sones
  • Ceiling mount ventilating Fan/Dimmable LED Light rated for continuous running
    • Included:
    • 13-Watt LED Edge-Lit (equivalent to a 60-Watt incandescent bulb). Dimmer switch is not included
    • Main light output: 1000 Lumens; 3000K; 80 CRI for high color accuracy
  • Energy efficiency at 7.5 CFM/Watt
  • 13-Watt integrated LED Edge-Lit lasts up to 30,000 hours (compare with 10,000 hours CFL life)
  • Self-compensating motor speed for intended airflow when static pressure is encountered
  • Annual energy cost for 24/7 operation is approximately $17.88*

ITG100RLED - 100 CFM Fan/LED Edge-Lit, Flat Round Panel

Additional Information

Static Pressure (inches w.g.)0.1, 0.25
Air Flow (CFM)100, 85
Sones1.5, 2
Power Consumption (Watts)17, 21
Energy Efficiency (CFM/Watts)7.5, 5.9
Current (Amps)0.47 Max
Power Rating (V/Hz)120/60
LED Light (Watt)13
