category:
HVAC Supplies
country_of_origin:
USA
depth:
9.375
height:
5.75
manufacturer:
Delta Breez
mpn:
ITG50
subcategory:
BreezIntegrity Fans
type:
Ventilation Fan
upc:
885917002220
weight:
4
width:
10.75
Product Description

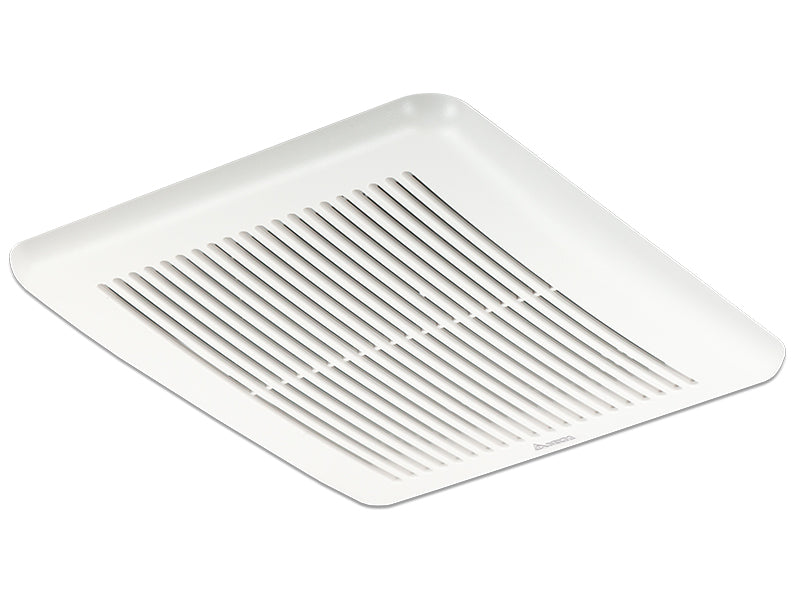

Delta Breez - ITG50 Delta Breez ITG50 - The Builder’s Choice for Green Construction.
Delta BreezIntegrity ITG50 has been awarded ENERGY STAR® Most Efficient 2017 with brushless DC motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 50 CFM and loudness rating of 0.7 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of not more than 5.0 Watts with efficiency rating of 12.5 CFM/Watt. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
Features
- ENERGY STAR® qualified with DC Motor technology
- Quiet operation at 0.7 Sones
- ITG50 is UL listed for both ceiling and wall-mount installation
- Compact housing for easy retrofit and replacement of older bath fans
- UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
- Energy efficiency at 12.5 CFM/Watt
- Annual energy cost for 24/7 operation is approximately $5.26*
ITG50 - 50 CFM Fan
Additional Information
Static Pressure (inches w.g.)0.1, 0.25
Air Flow (CFM)50, 37
Sones0.7, 1.3
Power Consumption (Watts)5, 7
Energy Efficiency (CFM/Watts)12.5, 6.7
Current (Amps)0.14 Max
Power Rating (V/Hz)120/60
NoteProject Pack Components Available ITG-A (housing) and ITG50-B (motor and grille)
