category:
HVAC Supplies
country_of_origin:
USA
height:
5.75
length:
7.5
manufacturer:
Delta Breez
mpn:
ITG80
subcategory:
BreezIntegrity Fans
type:
Ventilation Fan
upc:
885917001582
weight:
4
width:
7.25
Product Description

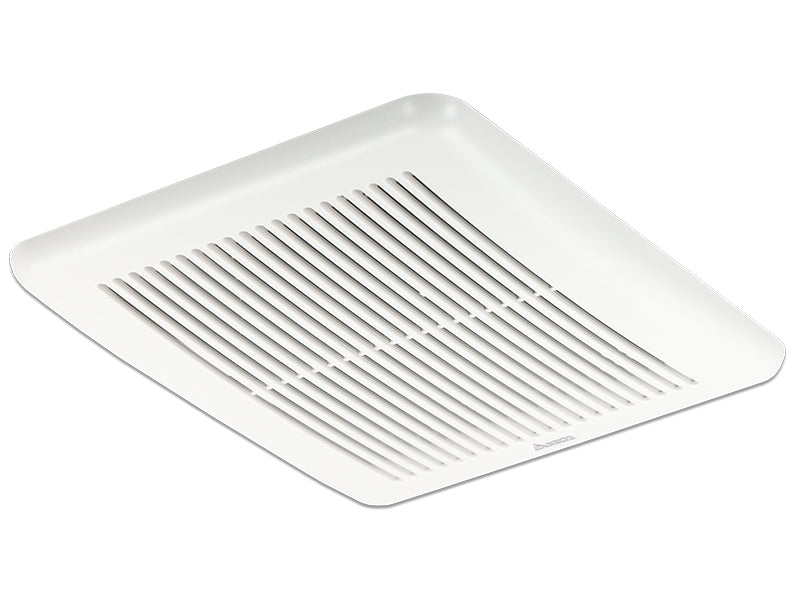

Delta Breez - ITG80 Delta Breez ITG80 - The Builder’s Choice for Green Construction.
Delta BreezIntegrity series are ENERGY STAR qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hours. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring. Available in contractor packs.
Features
- ENERGY STAR® qualified with DC Motor technology
- Quiet operation at 1.3 Sones
- ITG80 is UL listed for both ceiling and wall-mount installation
- Compact housing for easy retrofit and replacement of older bath fans
- UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
- Energy efficiency at 8.4 CFM/Watt
- Annual energy cost for 24/7 operation is approximately $9.98*
ITG80 - 80 CFM Fan
Additional Information
Static Pressure (inches w.g.)0.1, 0.25
Air Flow (CFM)80, 60
Sones1.3, 1.4
Power Consumption (Watts)10, 12
Energy Efficiency (CFM/Watts)8.4, 6.6
Current (Amps)0.20 Max
Power Rating (V/Hz)120/60
NoteProject Pack Components Available ITG-A (housing) and ITG80-B (motor grille)
