category:
HVAC Supplies
country_of_origin:
USA
depth:
10.7916666666667
height:
5.79166666666667
manufacturer:
Delta Breez
mpn:
ITG80LED
subcategory:
BreezIntegrity Fans
type:
Ventilation Fan
upc:
885917001629
weight:
4.8
width:
10.7916666666667
Product Description
Delta Breez - ITG80LED Delta Breez ITG80LED - The Builder’s Choice for Green Construction.
Delta BreezIntegrity ITG80LED is ENERGY STAR® qualified with brushless DC motor engineered to run continuously for a minimum 70,000 hours. Airflow rating of 80 CFM and loudness rating of 1.3 Sone at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 11.3 Watts with effciency rating of 7.2 CFM/Watt at 0.1” static pressure; motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
Features
- ENERGY STAR® qualified with brushless DC motor technology
- Quiet operation at 1.3 sones
- Ceiling mount ventilating fan/Dimmable LED Light rated for continuous running
- Included:
- 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
- Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy
- Energy efficiency at 7.2 CFM/Watt
- LED life is 30,000 hours (compare with 10,000 hours CFL life)
- Self-compensating motor speed for intended airflow when static pressure is encountered
- Annual energy cost for 24/7 operation is approximately $11.88*

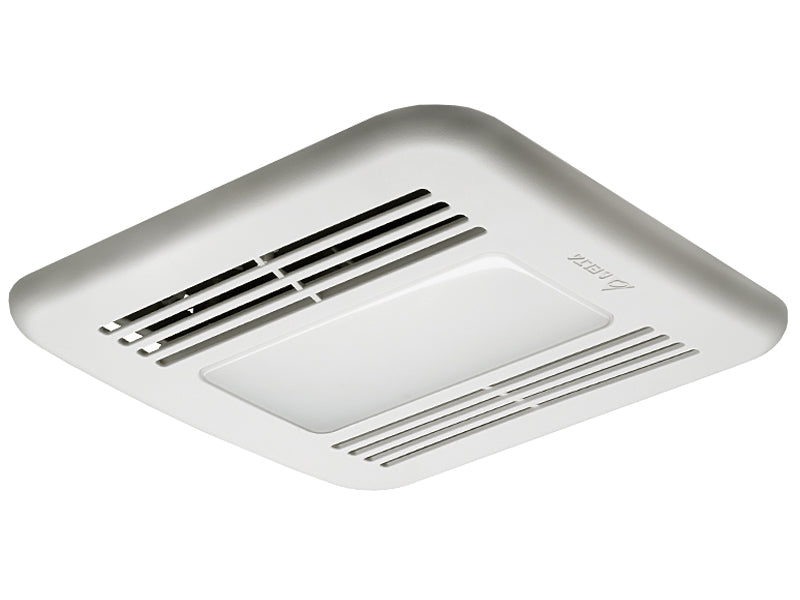

ITG80LED - 80 CFM Fan/Dimmable LED Light
Additional Information
Static Pressure (inches w.g.)0.1, 0.25
Air Flow (CFM)80, 60
Sones1.3, 1.5
Power Consumption (Watts)11.3, 11.5
Energy Efficiency (CFM/Watts)7.2, 6.2
Current (Amps)0.14 Max
Power Rating (V/Hz)120/60
LED Light (Watt)13
