category:
HVAC Supplies
country_of_origin:
USA
depth:
11.8
height:
5.75
manufacturer:
Delta Breez
mpn:
ITG80RLED-ADJ
subcategory:
BreezIntegrity Fans
type:
Ventilation Fan
upc:
885917003913
weight:
7.7
width:
1.5
Product Description
Delta Breez - ITG80RLED-ADJ Delta Breez ITG80RLED-ADJ - Ventilation fan shall be Delta Breez model ITG80RLED-ADJ; ENERGY STAR qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM and loudness rating of 1.5 sones at 0.1" static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 11.5 Watts with efficiency rating of 7.2 CFM/Watt at 0.1” static pressure; motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring
Features
- ENERGY STAR® qualified with innovative brushless DC motor technology
- Perfectly quiet operation at 1.5 sones
- UL approved for ceiling mount installation
- 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included.
- Main light output: 1000 Lumens; 80 CRI for high color accuracy
- Adjustable color temperatures of 2700K, 4000K, and 5000K for the perfect ambiance
- LED life is 30,000 hours (compare with 10,000-hour CFL life)
- Energy efficiency at 7.2 CFM/Watt
- Annual energy cost for 24/7 operation is approximately $11.89*

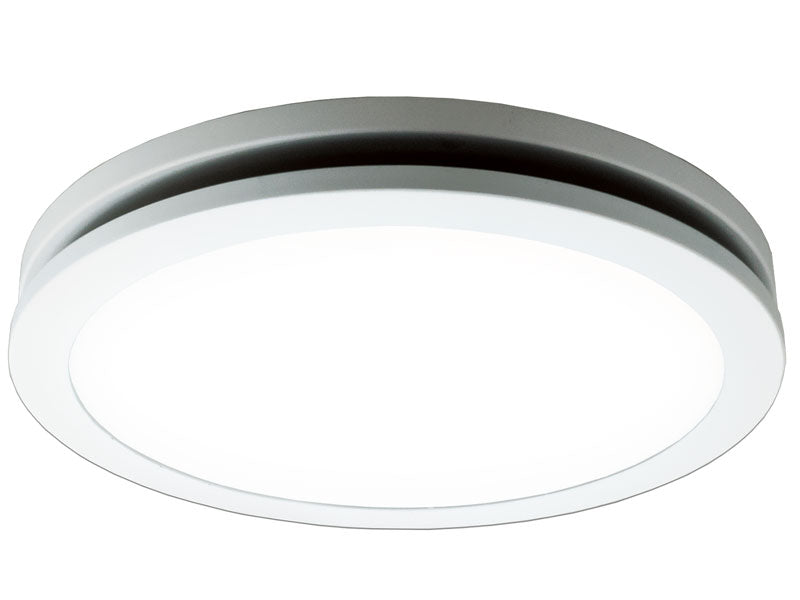

ITG80RLED-ADJ - 80 CFM Fan/LED Edge-Lit, Flat Round Panel w/ Adjustable Color Temperature
Additional Information
Static Pressure (inches w.g.)0.1, 0.25
Air Flow (CFM)80, 56
Sones1.5, 1.5
Power Consumption (Watts)11.5, 11.5
Energy Efficiency (CFM/Watts)7.2, 6.2
Current (Amps)0.14 Max
Power Rating (V/Hz)120/60
LED Module (Watts)13
