Delta Breez

Delta Breez SIG80-110HLED BreezSignature 80/110 CFM Exhaust Fan/Dimmable LED Light/Night-Light with Humidity Sensor

Delta Breez SIG80-110HLED BreezSignature 80/110 CFM Exhaust Fan/Dimmable LED Light/Night-Light with Humidity Sensor

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17

SKU SKU:kpi115-SIG80-110HLED

Regular price $309.10 USD
Regular price Sale price $309.10 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: HVAC Supplies
country_of_origin: USA
depth: 12.375
height: 7.875
manufacturer: Delta Breez
mpn: SIG80-110HLED
subcategory: BreezSignature Fans
type: Ventilation Fan
upc: 885917002381
weight: 10
width: 12.375

Product Description

Delta Breez - SIG80-110HLED Delta Breez SIG80-110HLED - Innovative brushless DC motor design for long life, low noise, and low power consumption

The exceptional reliability of Delta’s Brushless DC Motor is combined with control options including adjustable continuous low speed down to 30 CFM. Delta Breez model SIG80-110HLED has been awarded ENERGY STAR® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of less than 0.3 Sones at 0.1”static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 9.7 Watts with efficiency rating of 12.7 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. LED life is 30,000 hours (compare with 10,000 hours CFL life). One 13-Watt LED main light and one 2-Watt LED night light are included. Main light output is 800 Lumens and 2700K. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • Perfectly quiet operation at less than 0.3 sones

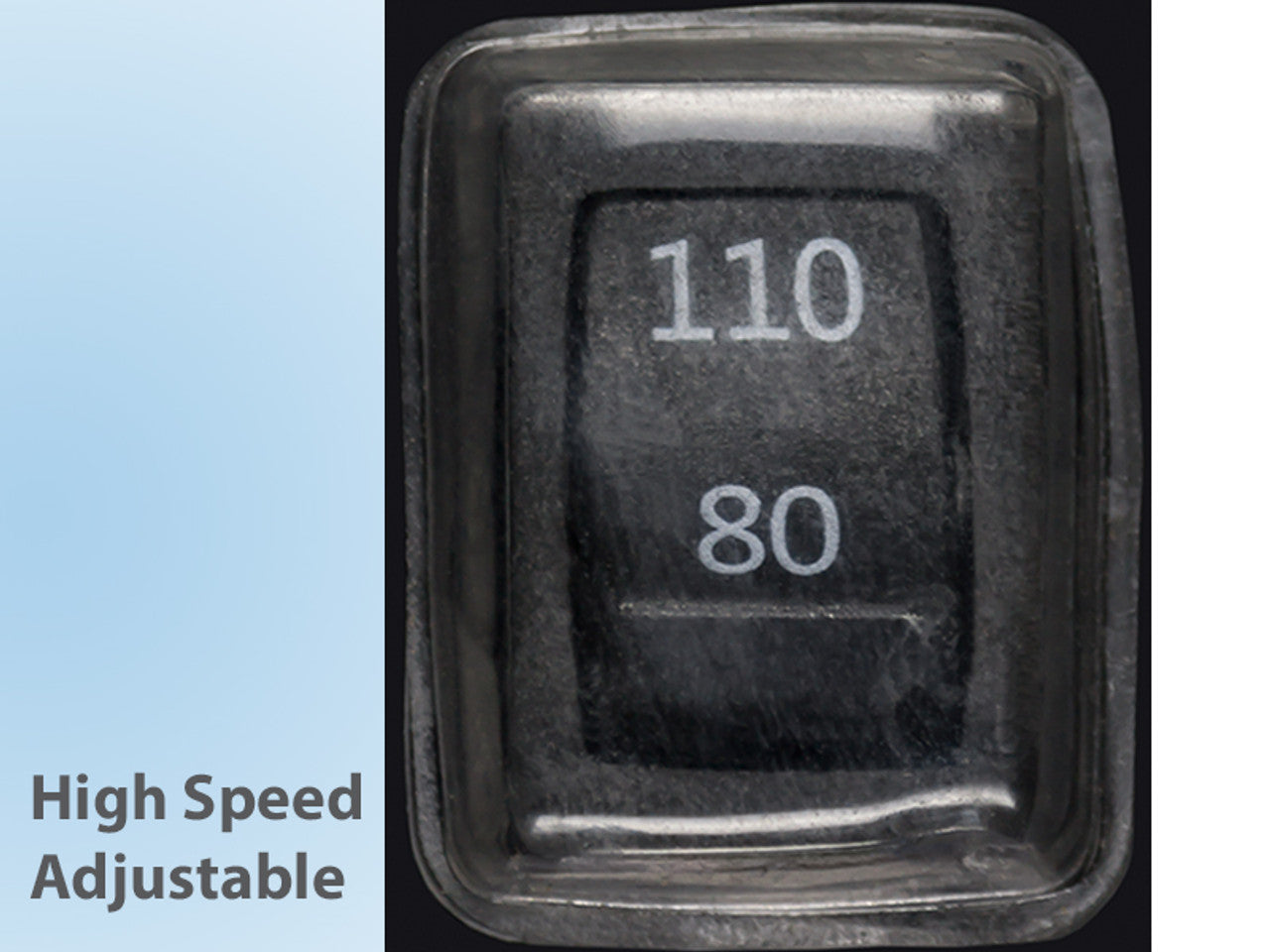

  • Full speed adjustable, 80 CFM or 110 CFM
  • Fan speed mode from 30 CFM to 110 CFM. Full Speed Mode and Humidity Control Mode
  • LED life is 30,000 hours (compare with 10,000 hours CFL life)
  • Included:
    • White Grille with dimmable LED light
    • (1) 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
    • (1) 2-Watt LED night light
  • Main light output: 950 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements
  • Allows fan to operate in full speed mode or humidity control mode by manual switch
  • For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 30, 50, 60, or 80 CFM)
  • Adjustable humidity set points between ~50% to ~90% RH
  • Includes 6" to 4" duct reducer
  • Energy efficiency at 13.8 CFM/Watt

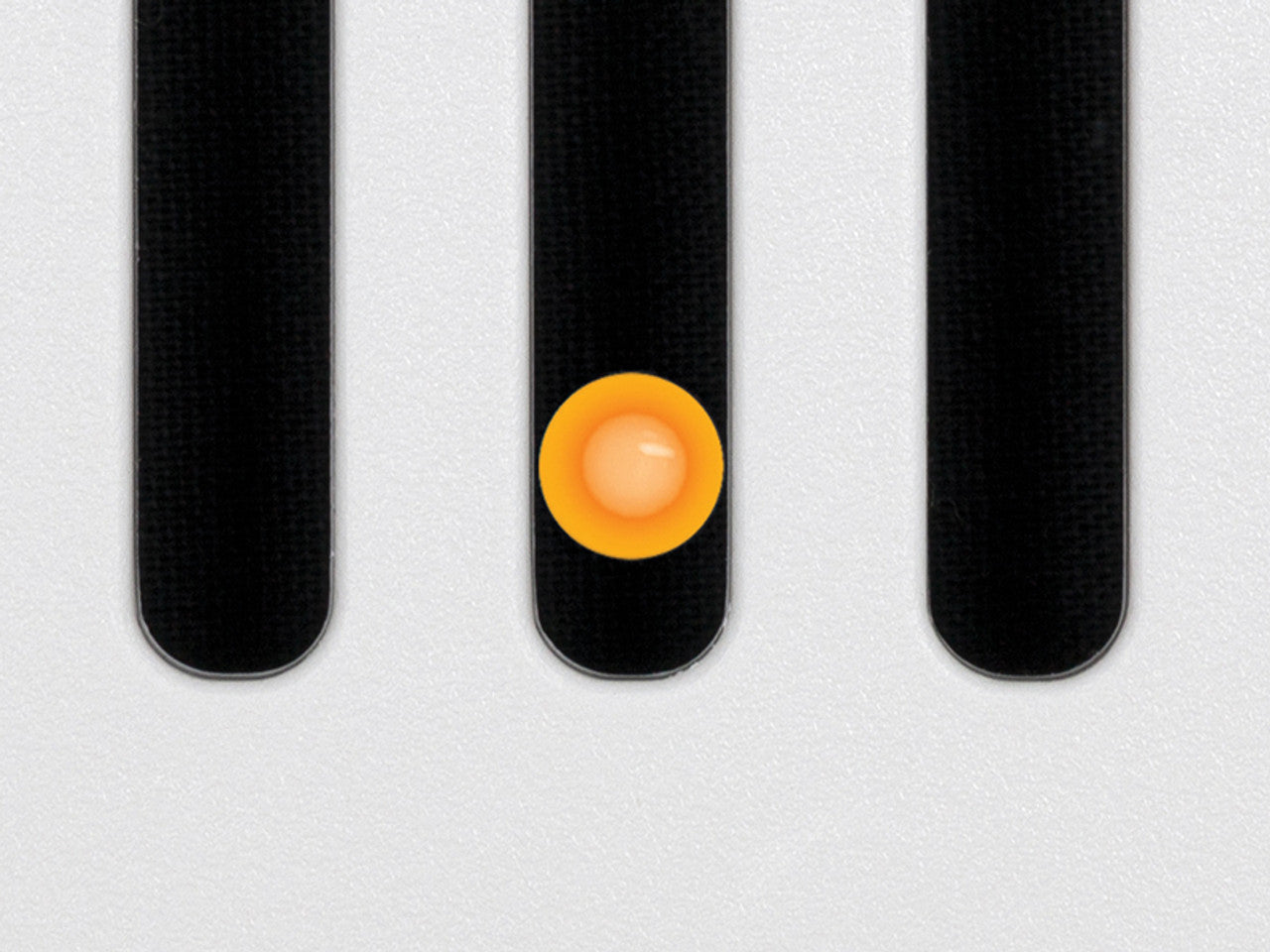

  • Green and amber LED indicator lights show continuous low speed and full speed modes
  • Annual energy cost for 24/7 operation is approximately $7.20* (80 CFM) or $8.62* (110 CFM)

Additional Information

Fan SpeedContinuous Low Speed/Full Speed
Static Pressure0.1 - 0.25
Maximum CFM110 cfm
Sones0.3 - 2.0
Current0.48 Max
LED Main Light (Watts)13
LED Night Light (Watts)2
Duct Size4" and 6"
Duct Diameter4" and 6"
Energy StarYes
Voltage120/60
Watts4.4 - 18.0
