category:
MEASURING & LEVELING TOOLS
manufacturer:
Nasco
mpn:
238-GC235
subcategory:
GAUGES/GAGES
Product Description

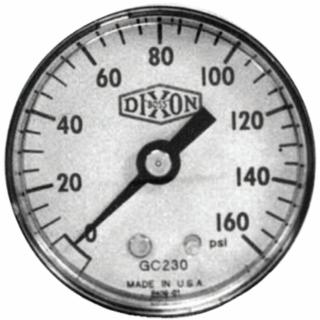

Nasco - 238-GC235
| Lead Time | 1-2 Weeks |
|---|---|
| Manufacturer Part Number | GC235 |
| GTIN | |
| Family | Dixon Valve Standard Dry Gauges |
| Manufacturer | Dixon Valve |
| Manufacturer URL | http://www.dixonvalve.com |
| Hazmat | N |
| Testing and Approvals | ASME |
| Country of Origin | BR |
| Features | Designed to resist the effects of shock, vibration and pulsation Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement Can be used for pumps, hydraulic and pneumatic systems, compressors, machine tools Also for other installations where it is necessary to have a gauge with a non-corrosive movement All of the gauges supplied by Dixon are designed for long, reliable service under rugged conditions |
| Accuracy | 3-2-3% |
| Body Material | ABS |
| Case Material | ABS |
| Color | Black |
| Connection Size [Nom] | 1/4 in NPT(M) |
| Connector Type | NPT |
| Dia. [Nom] | 2 in |
| Display Type | Dial |
| Gauge Size | 2 in |
| Lens Material | Polycarbonate |
| Measuring System | Imperial |
| Mounting | Center Back |
| Operating Pressure [Max] | 200 psi |
| Operating Temp. [Max] | 150 F |
| Operating Temp. [Min] | -40 F |
| Range 1 | 0 to 200 psi |
| Thread Size [Nom] | 1/4 in |
| Type | Pressure |
| Used With | Compressors; Hydraulic and Pneumatic Systems; Machine Tools; Pumps |
| Wt. | 0.2 lb |
