category:
MEASURING & LEVELING TOOLS
manufacturer:
Nasco
mpn:
238-GLBRC200
subcategory:
GAUGES/GAGES
Product Description

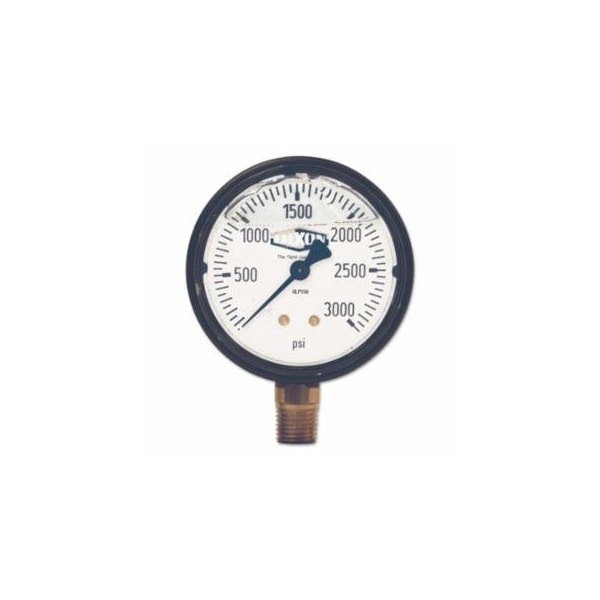

Nasco - 238-GLBRC200
| Lead Time | 1-2 Weeks |
|---|---|
| Manufacturer Part Number | GLBRC200 |
| GTIN | |
| Family | Dixon Valve Liquid Filled Gauges |
| Manufacturer | Dixon Valve |
| Manufacturer URL | http://www.dixonvalve.com |
| Hazmat | N |
| Country of Origin | US |
| Features | Designed for long and reliable service under rugged conditions Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools For other installations where it is necessary to have a gauge with a non-corrosive movement Glycerin filled |
| Accuracy | 1.5% |
| Body Material | Brass |
| Case Material | ABS; Brass |
| Connection Size [Nom] | 1/4 in NPT(M) |
| Connector Type | NPT |
| Dia. [Nom] | 2 1/2 in |
| Display Type | Dial |
| Gauge Size | 2 1/2 in |
| Lens Material | Acrylic |
| Measuring System | Imperial |
| Mounting | Center Back |
| Operating Pressure [Max] | 200 psi |
| Operating Temp. [Max] | 140 F |
| Operating Temp. [Min] | 0 F |
| Range 1 | 0 to 200 psi |
| Thread Size [Nom] | 1/4 in |
| Type | Pressure |
| Used With | Compressors; Hydraulic and Pneumatic Systems; Machine Tools; Pumps |
| Wt. | 0.86 lb |
