category:
MEASURING & LEVELING TOOLS
manufacturer:
Nasco
mpn:
238-GLS450
subcategory:
GAUGES/GAGES
Product Description

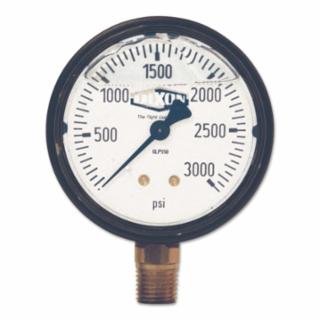

Nasco - 238-GLS450
| Lead Time | 1-2 Weeks |
|---|---|
| Manufacturer Part Number | GLS450 |
| GTIN | |
| Family | Dixon Valve Liquid Filled Gauges |
| Manufacturer | Dixon Valve |
| Manufacturer URL | http://www.dixonvalve.com |
| Hazmat | N |
| Testing and Approvals | ASME |
| Country of Origin | US |
| Features | Designed for long and reliable service under rugged conditions Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools For other installations where it is necessary to have a gauge with a non-corrosive movement Glycerin filled |
| Accuracy | 3-2-3% |
| Body Material | Stainless Steel |
| Case Material | Stainless Steel |
| Color | Black |
| Connection Size [Nom] | 1/4 in NPT(M) |
| Connector Type | NPT |
| Dia. [Nom] | 2 1/2 in |
| Display Type | Dial |
| Gauge Size | 2 1/2 in |
| Lens Material | Polycarbonate |
| Measuring System | Imperial |
| Mounting | Center Back |
| Operating Pressure [Max] | 3000 psi |
| Operating Temp. [Max] | 150 F |
| Operating Temp. [Min] | 20 F |
| Range 1 | 0 to 3000 psi |
| Thread Size [Nom] | 1/4 in |
| Type | Pressure |
| Used With | Compressors; Hydraulic and Pneumatic Systems; Machine Tools; Pumps |
| Wt. | 0.01 lb |
