Data Sheet Product Description

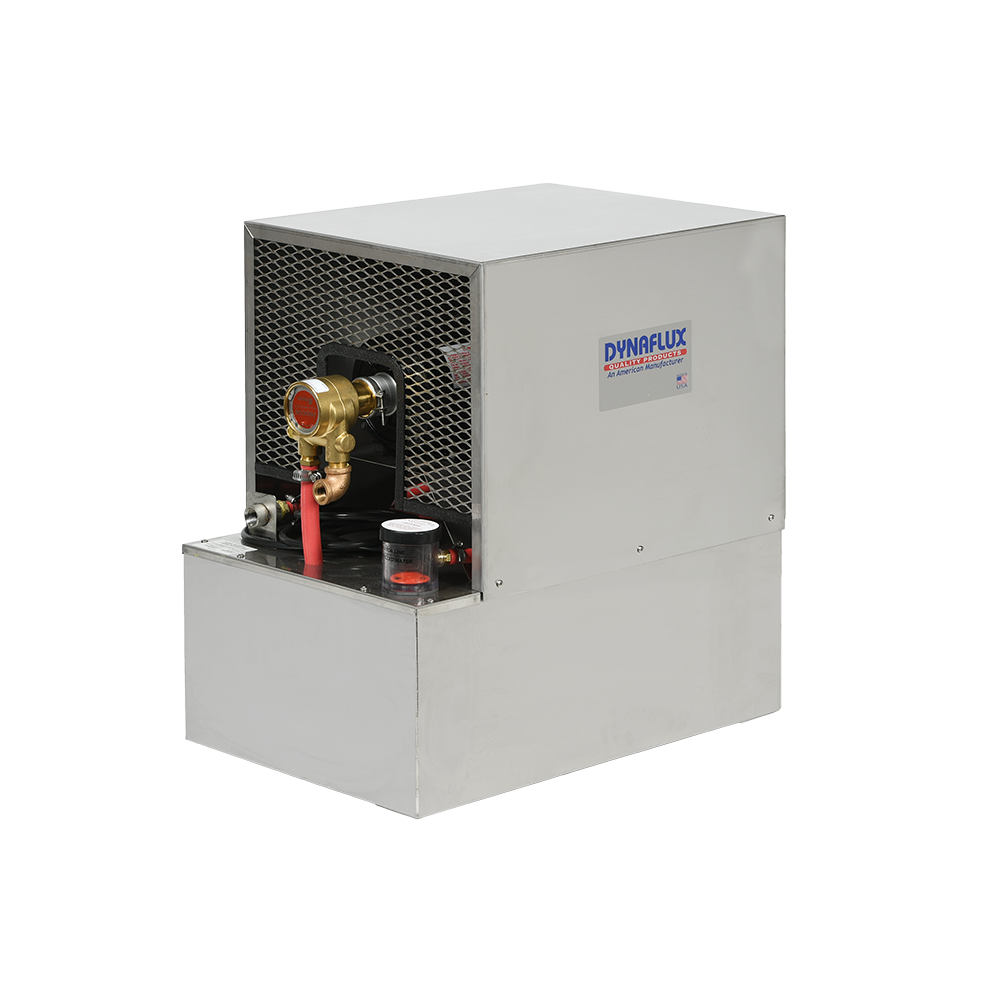

Dynaflux - R2200V-230 R2200 V Cooling System
Specification
- Factory set at 50 psi adjustable to 100 psi
- 15 gallon reservoir (6 gallon available)
- 115 or 230 VAC / 1 ph-50 / 60 Hz
- 8.2 / 4.1 amp:60 Hz
- 30,000 BTU
- Dimensions: 23″L x 16″W x 25.5″H
- 1/2″ FPT fittings-water in and out
- 8 foot power cord
- Visible water level and water flow sight glass
- Net weight: 70 lbs / 32 kg
R2200 V: Rotary VANE Pump
4.0 gpm at 50 psi
System Features
- Stainless steel construction eliminates coolant contamination due to electrolysis or chemical reactions.
- All units are plumbed with copper tubing and reinforced hose.
- New extended life pump.
- Air flows into patented high efficiency radiator first for maximum efficiency.
- No external plumbing is required because of closed loop water system.
- A water level float gauge and filler cap are combined in a single unit multi-purpose sight glass which enables operator to observe return water at a distance.
- Water filter on pump inlet protects pump and extends pump life.
