category:
Threaded Insert
manufacturer:
E-Z LOK
mpn:
170-004-BR
upc:
847554050125
weight:
0.0275 lbs
Product Description

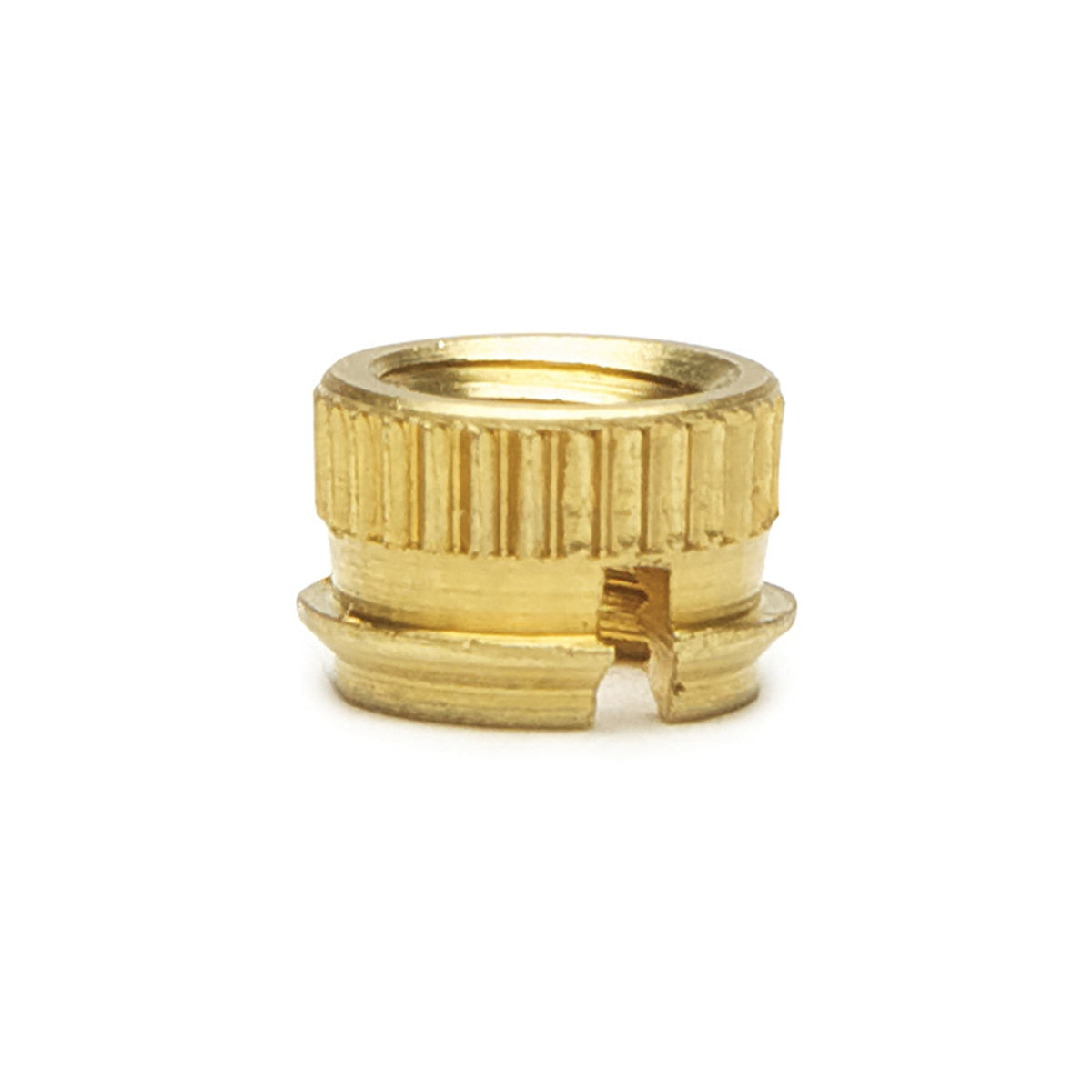

E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.
Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #4 to 5/16 and M5 to M8.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.
Features
- Easy press-in installation
- Design minimizes splintering and splitting
- Available in 3 lengths for varying material thicknesses
Applications:
- Soft woods: such as pine, composition board, and MDF
- Most Plastics
Additional Information
E-Z Lok P/N: 170-004-BR
For Use in: Soft Wood, Thermoset Plastic, Thermoplastic
Style: Finsert
Material: Brass
System of Measurement: Inch
Internal Thread: 4-40
Drill Size: #5
