E-Z LOK

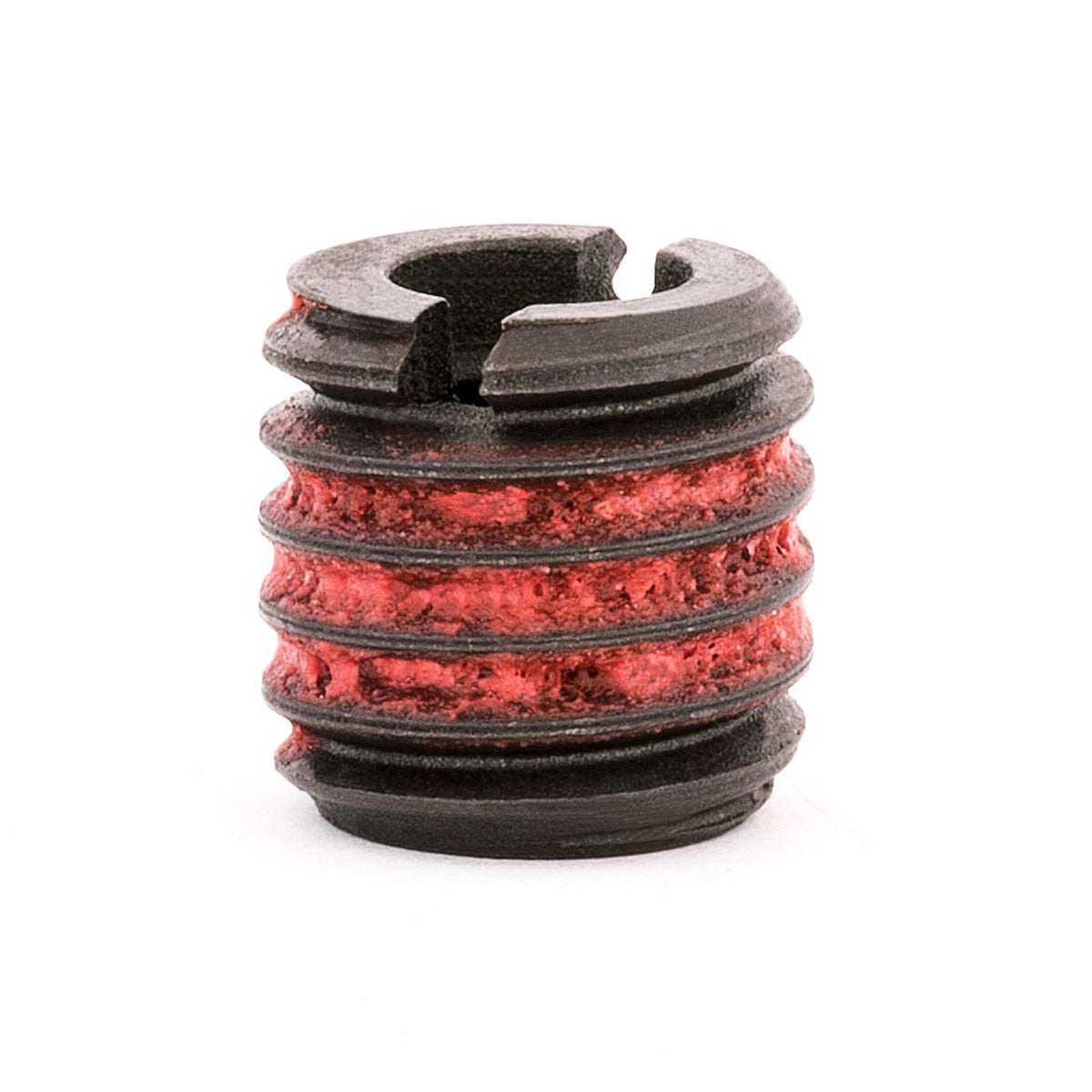

E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 1/4-20 x 1/2-13 (Pack of 10)

E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 1/4-20 x 1/2-13 (Pack of 10)

Dropship

Get it by Sat, Mar 15 - Thu, Mar 20

SKU SKU:kpi205-335-4

Regular price $10.27 USD
Regular price Sale price $10.27 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Threaded Insert
manufacturer: E-Z LOK
mpn: 335-4
upc: 839137000801
weight: 0.147 lbs

Product Description

E-Z LOK™ (Solid Wall) threaded inserts with Extra Heavy Wall are ideal for reducing the size of tapped holes, typically after previous drilling/re-tapping operations. Like all E-Z LOK™ (Solid Wall) threaded inserts, the Extra Heavy Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z LOK™ drive tool.

Features
  • Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
  • Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
  • Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
  • Standard size and pitch external threads eliminate need for special taps or installation tools.
  • Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool
  • Ideal for soft metals, like aluminum, cast iron, and magnesium
Applications:
  • Soft metals: aluminum, cast iron, magnesium, etc.

Additional Information

E-Z Lok P/N: 335-4
For Use in: Metal
Sub-Category: Extra Heavy Wall
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Inch
Internal Thread: 1/4-20
External Thread: 1/2-13
Drill Size: 27/64
Tap Size: 1/2-13
