category:
Threaded Insert
manufacturer:
E-Z LOK
mpn:
240-004-BR
upc:
839137005219
weight:
0.03 lbs
Product Description

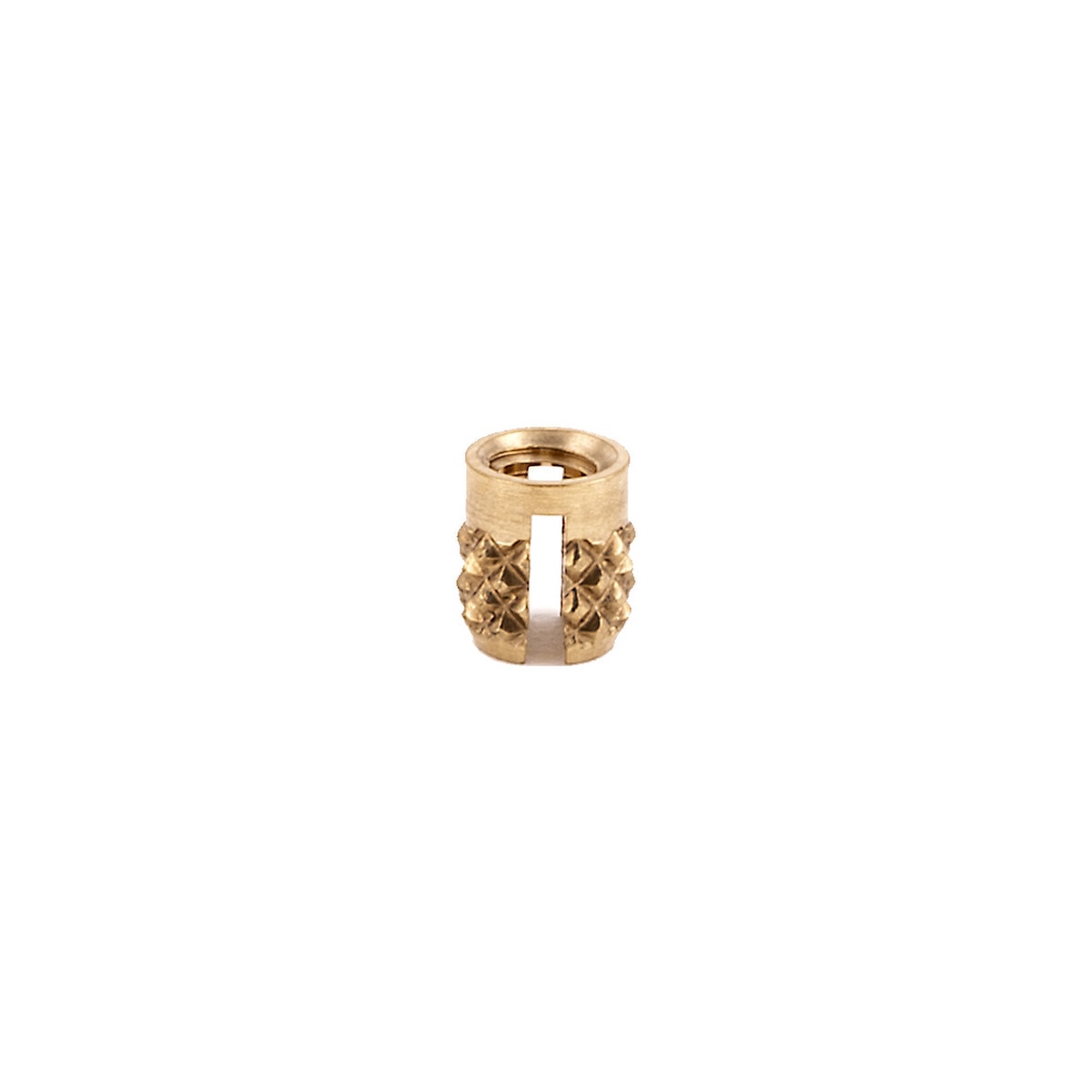

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.
Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.
Features- Install cold
- Reduce the cost of moldings
- Cut reject waste caused by misaligned and faulty inserts
- Eliminate the need to “chase” threads after molding
- Install properly without a precise hole depth
- Install properly without a precise hole depth
- Post-molding installation in either thermoset plastics or thermoplastics
Additional Information
E-Z Lok P/N: 240-004-BR
For Use in: Thermoset Plastic, Thermoplastic
Style: Press-In
Material: Brass
System of Measurement: Inch
Internal Thread: 4-40
Drill Size: 5/32
