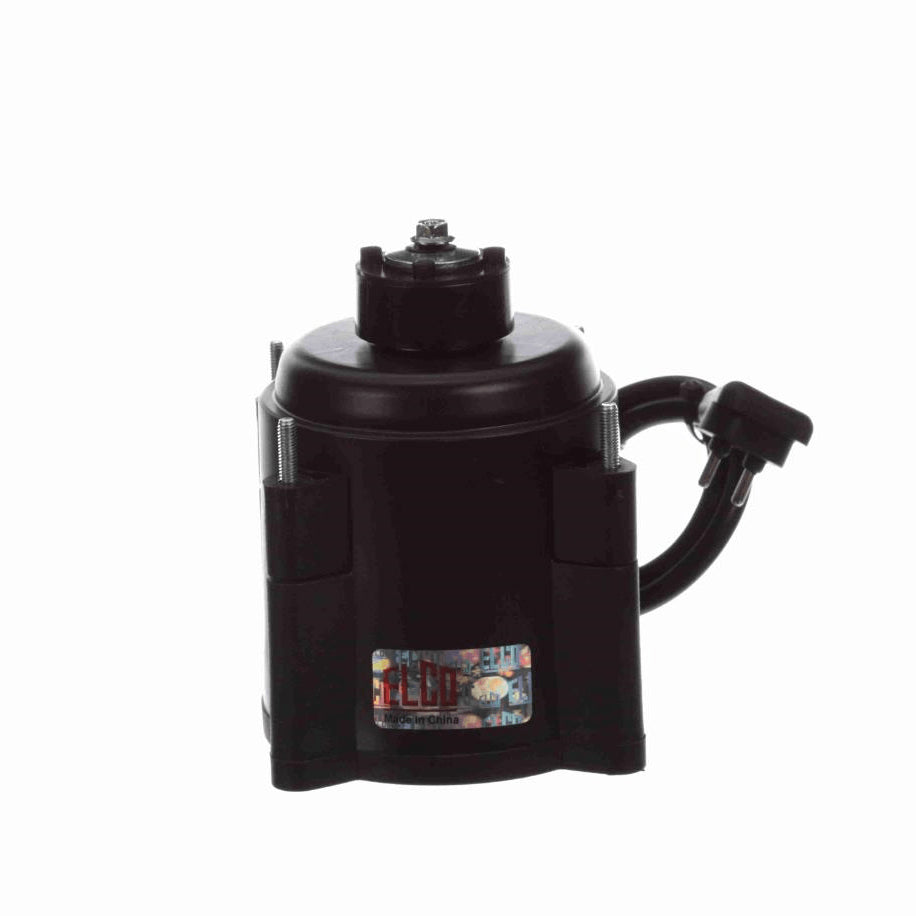

Century - EC-HE-0176
- OEM Direct Replacement Motor
- 3.3" Diameter
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, IP65
- Ball Bearing
- Shaft with 4 End-Studs
- 16" Leads with 2-Pin Molded Plug
- Shell Mounted 4 Extended Studs Shaft End
Additional Information
Thermal ProtectionNo Protection
Speed1600 rpm
Current0.22 A
Ambient Temperature60 °C
ULYes
Insulation ClassB
CSAY
Weight2.00 LB
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialPlastic
Shaft TypeFlat
Frame Length3.38 in
Shaft Diameter0.275 in
Shaft Extension0.6 in
Output Watts15 W
CEY
Starting MethodAcross The Line
CategoryElectric Motors
Height5
Length5
ManufacturerCentury
MpnEC-HE-0176
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight2
Width5.31
