category:
Electric Motors
height:
5
length:
5
manufacturer:
Century
mpn:
EC4W115
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.29
width:
5.31
Product Overview

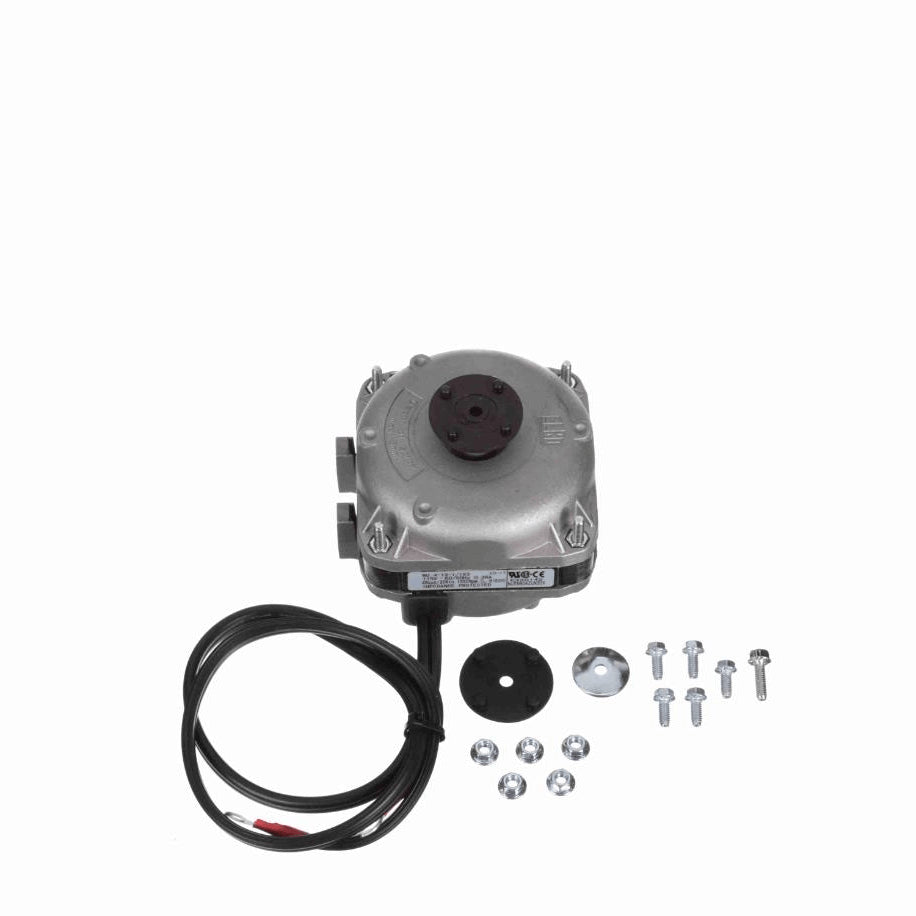

- ELCO - Refrigeration Motor
- 3.3" Diameter
- Shaded Pole
- Impedance Protected
- Totally Enclosed Air OVER
- Class B Insulation
- Sleeve Bearing
- Shaft with 4 End-Studs
- 21-23" Leads with Ring Terminals
- One Foot, Front Shroud, 3 Tapped Rear Holes
Additional Information
Thermal ProtectionNo Protection
Speed1550 rpm
Current0.36 A
Ambient Temperature40 °C
ULYes
Insulation ClassB
CSAY
Weight2.29 LB
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
Mounting1 BOSS/PE AND OPE 3 HOLES
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialAluminum
Shaft TypeFlat
Frame Length2.32 in
Shaft Diameter0.275 in
Shaft Extension0.49 in
Output Watts4 W
CEY
Starting MethodAcross The Line
