category:
Commercial Spout Type
manufacturer:
Elkay
mpn:
LK535AT12T4
subcategory:
Arc Tube
weight:
5
Product Description
Elkay - LK535AT12T4 Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts also included.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.
Additional Information
MaterialChrome-plated Brass
Spray TypeNone
Installation TypeDeck Mount
FeaturesLow FlowSolid Brass ConstructionSpout Swing Restriction Pin

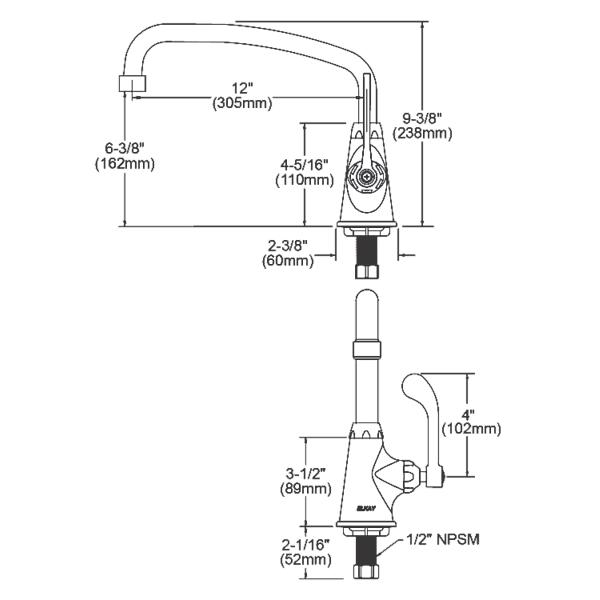

DimensionsL: 4-1/4",W: 13-11/16",H: 9-3/8"
Handle Quantity1
Handle Type4" Wristblade Handle
Deck Clearance6-3/8"
Spout Reach12"
Spout Height9-3/8"
Hole Drillings1
Application TypeClassroom
Spout TypeArc Tube
Valve TypeQuarter Turn Ceramic Disc - Cold
Valve Connection1/2"-14 NPSM
Flow Rate1.5 GPM
Shipping DimensionsL: 13-3/4",W: 10-3/4",H: 4-3/8"
Shipping Weight5 LBS
Country Of OriginUSA
ADAYes
Code Compliance FaucetsADA ICC A117.1ASME A112.18.1/CSA B125.1CECNSF 372 (lead free)NSF 61
Note1.5 GPM VR aerator installed with 2.2 and .5 GPM inserts included
