Product details
category: Commercial Spout Type
manufacturer: Elkay
mpn: LK801AT08L2
subcategory: Arc Tube
weight: 6
Product Overview
Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- CONVENIENT SIDE SPRAY: Ideal for cleaning dishes or filling pots and vases from the counter.
Additional Information
MaterialChrome-plated Brass
Spray TypeSide
Installation TypeDeck Mount
FeaturesLow FlowSolid Brass ConstructionSpout Swing Restriction Pin

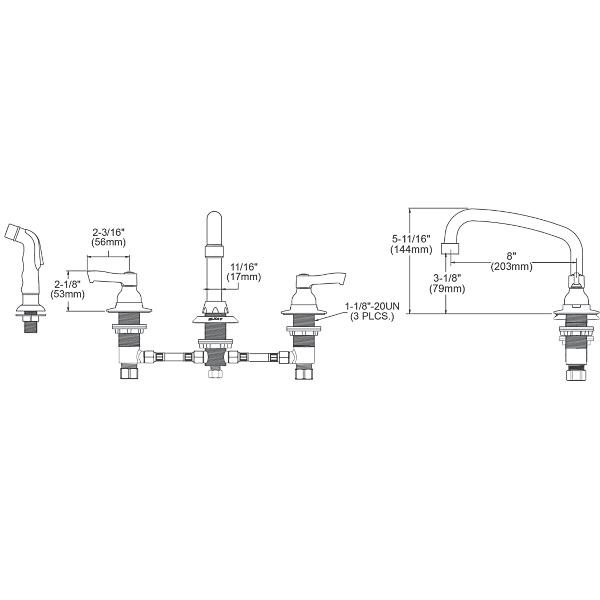

DimensionsL: 12-3/8",W: 10",H: 8-3/4"
Handle Quantity2
Handle Type2" Lever Handle
Deck Clearance3-1/8"
Spout Reach8"
Spout Height5-11/16"
Hole Drillings4
Application TypeFoodservice
Spout TypeArc Tube
Valve TypeQuarter Turn Ceramic Disc
Valve Connection3/8" Female Compression Hose Assembly
Flow Rate1.5 GPM
Shipping DimensionsL: 12-3/16",W: 7-3/8",H: 4-3/8"
Shipping Weight6 LBS
Country Of OriginUSA
ADAYes
Code Compliance FaucetsADA & ICC A117.1ASME A112.18.1/CSA B125.1CECNSF 372 (lead free)NSF 61
NoteReplacement cartridge A70001 for cold, Replacement cartridge A70002 for hot
