category:
Cooling Controls
manufacturer:
White Rodgers
mpn:
032303
Product Description

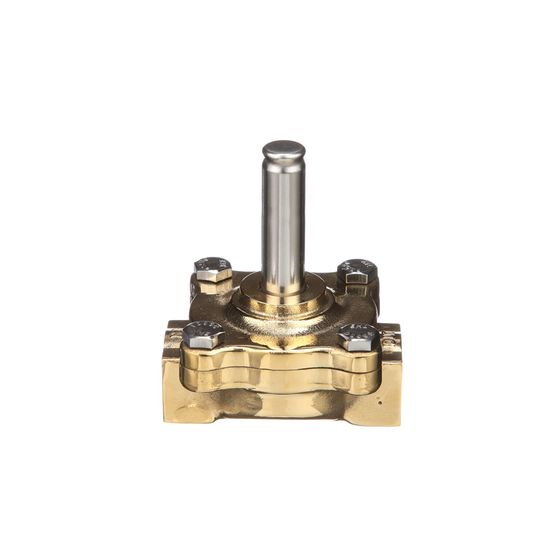

White Rodgers - 032303 The 210CA/211CA is a 2-way normally closed valve used in air, water and steam applications. The 210CA valve is pilot-operated and the 211CA valve is direct-acting.
Features:
- Unique captive diaphragm and seal
- Superior life with stainless steel enclosing tube
- Repair kits available
Additional Information
Weight1 lbs. 3 oz.
Valve TypeNormally Closed
Port Size5/8
Inlet Connection Size19
Outlet Connection Size3/8 FPT
Maximum Working Pressure300 psi (250 psi on 177 210C only)
Coil Voltage12 Watts Ac
Body MaterialBrass
Elastomer CodeP (Ethylene Propylene)
Va Inrush31
Va Holding19
Multiple Input Voltages24, 120, 208-240/50-60 Hz
Diaphragm Operated Solenoid Valve Pressure210CA - from 5 to 150 psi. 3/8 to 1 NPT 211CA - from 0 to 100 psi. 3/8 to 3/4 NPT
