category:
Valves
manufacturer:
White Rodgers
mpn:
046269
subcategory:
Diaphragm Solenoid Valve
Product Description

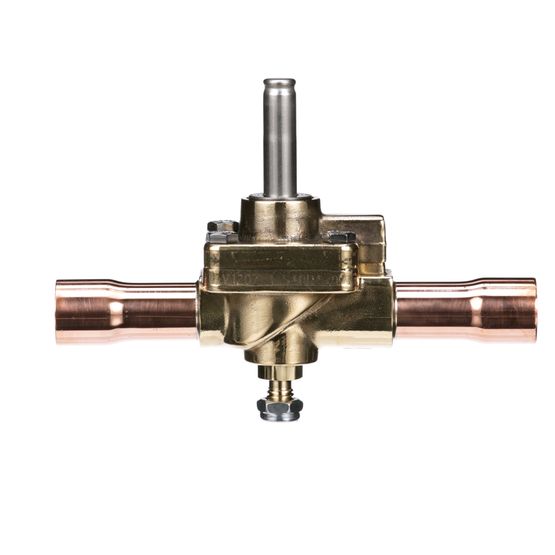

White Rodgers - 046269 The 540RA is a 2-way, normally open diaphragm valve. 540RA valves are used for liquid, suction and hot gas service.
Features:
- Can be brazed into the line without disassembly
- PTFE diaphragm
- Extended ends for easy installation
- Long-life molded coils
- Low pressure differential required for full opening
Additional Information
Valve TypeDiaphragm, 2-Way, Normally Open
Port Size3/4
Inlet Connection Size250 psig
Outlet Connection Size7/8 ODF Extended End
Special FeatureMounting Stud
Maximum Fluid Temperature250°F
Maximum Working Pressure500 psig
MOPD250 psig
