category:
Electric & Heating Controls
manufacturer:
White Rodgers
mpn:
099030
subcategory:
Single Adjustable Pressure Control
Product Description

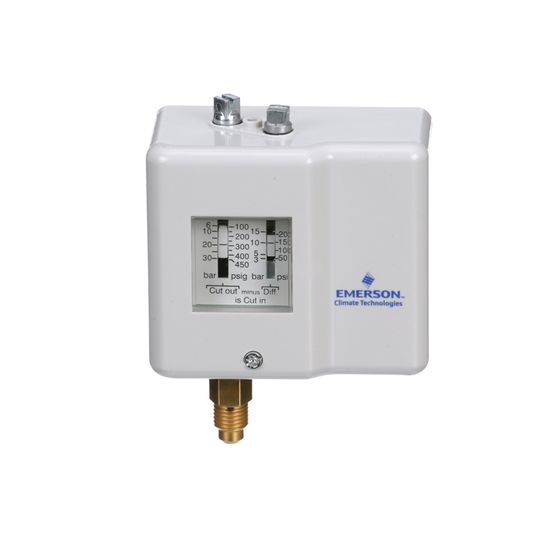

White Rodgers - 099030 PS1 Single Pressure Controls are designed for use on high and low pressure applications in refrigeration, air conditioning and heat pump systems, providing single-device control of the compressor or other electrical device.
Features:
- Adjustable pressures and differentials
- Narrow adjustable differential depending on model
- Range and differential pointer in units bar and psig
- Range and differential individually lockable by tab
- High rated SPDT contacts for all versions
- Captive terminal and cover screws
- Manual toggle for system checkout and override
Additional Information
Electrical RatingsSPDT switch rated for 16 FLA, 96 LRA at 120 Vac, 12 FLA, 72 LRA at 240 Vac
Connection TypeK (1 m (3 ft.) Cap Tube w/1/4 Flare Nut)
FunctionY (Manual Reset)
Factory Setting (psig)290 psig
Pressure Adjustment Range (psig)5 (87 to 464 psig, 6 to 32 bar)
Differential Range (psig)Fixed
