Product Description

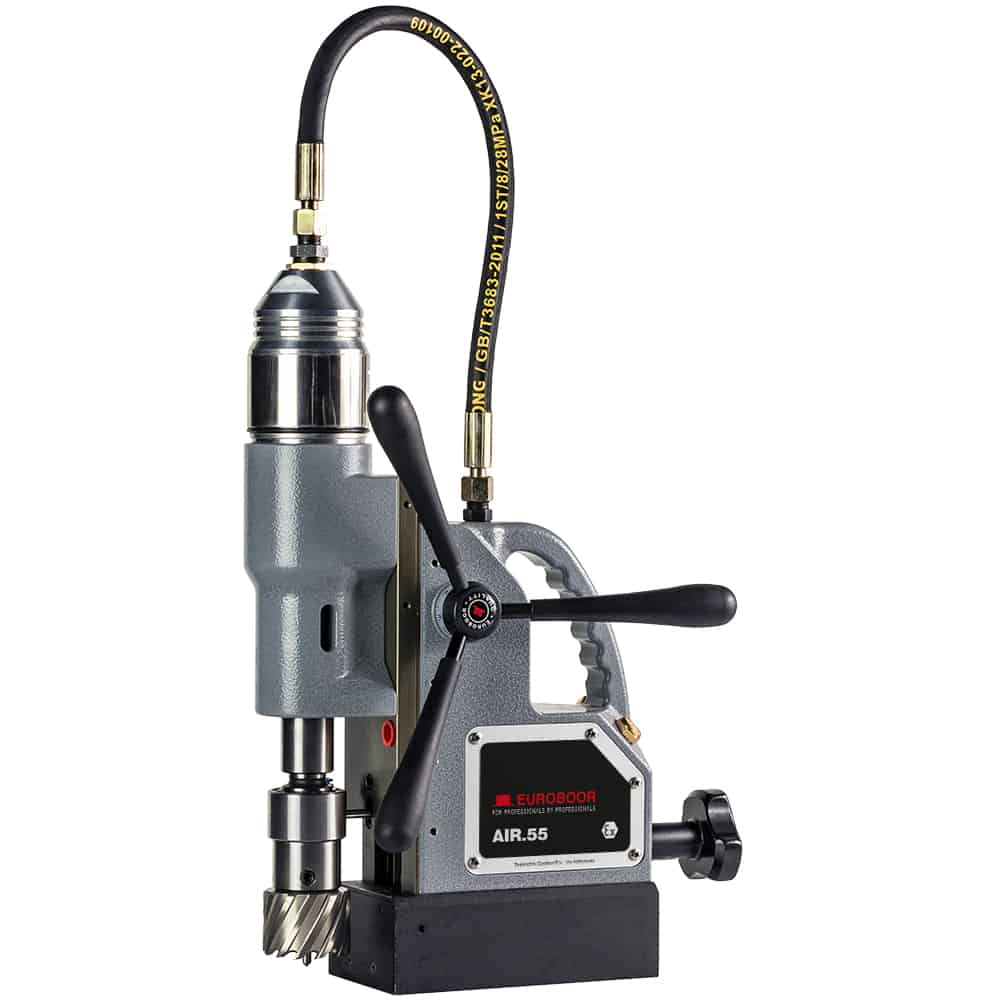

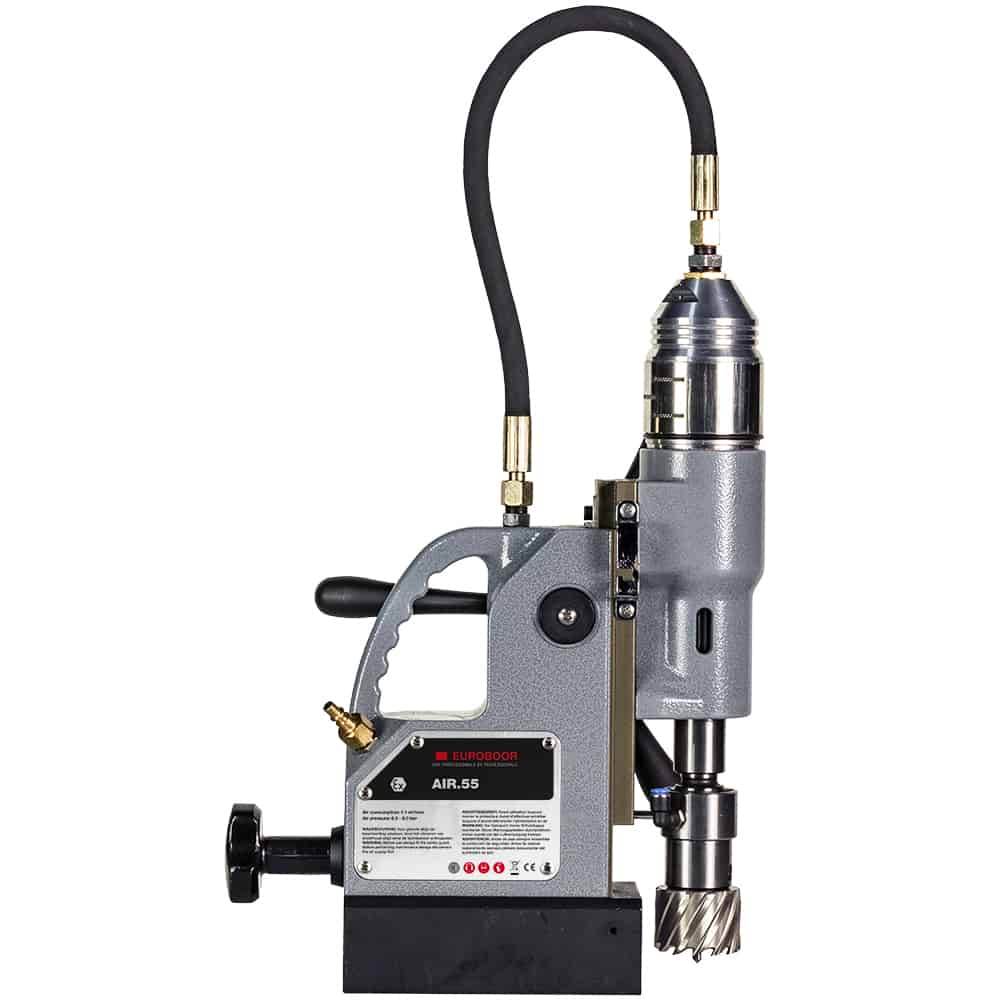

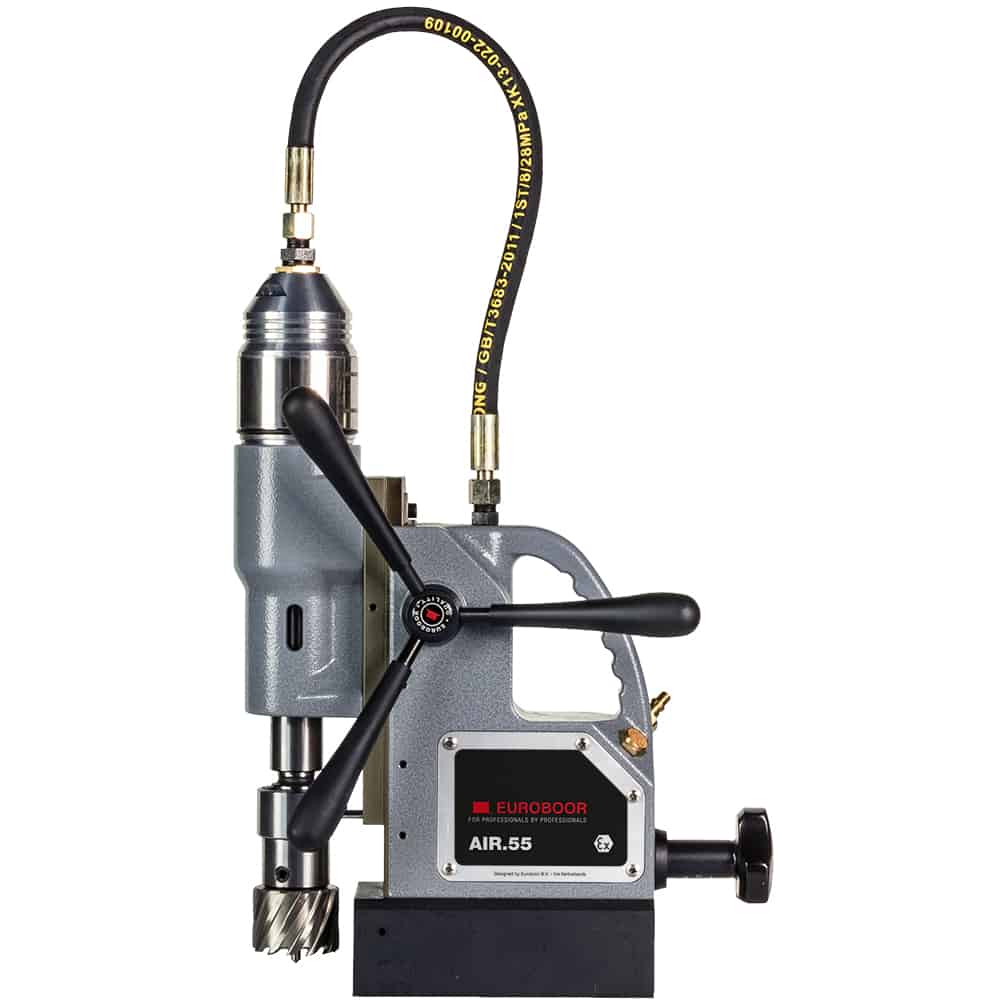

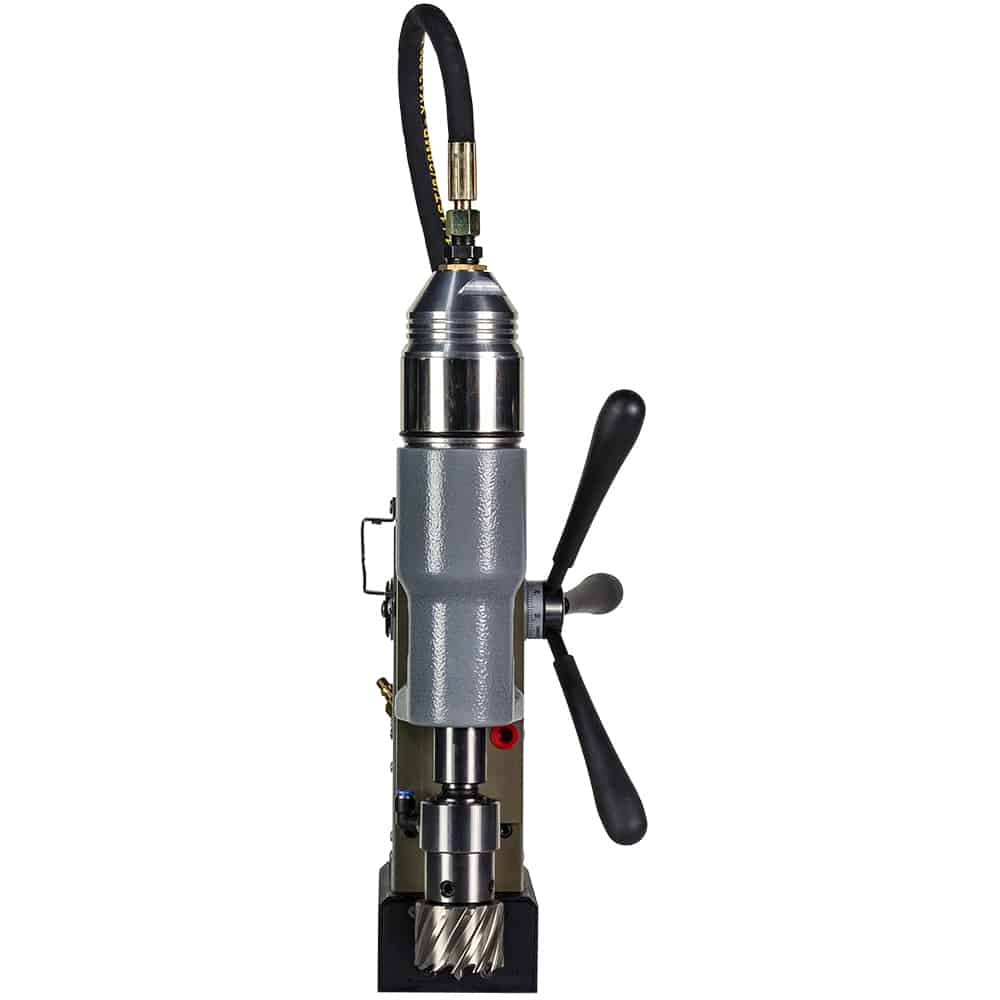

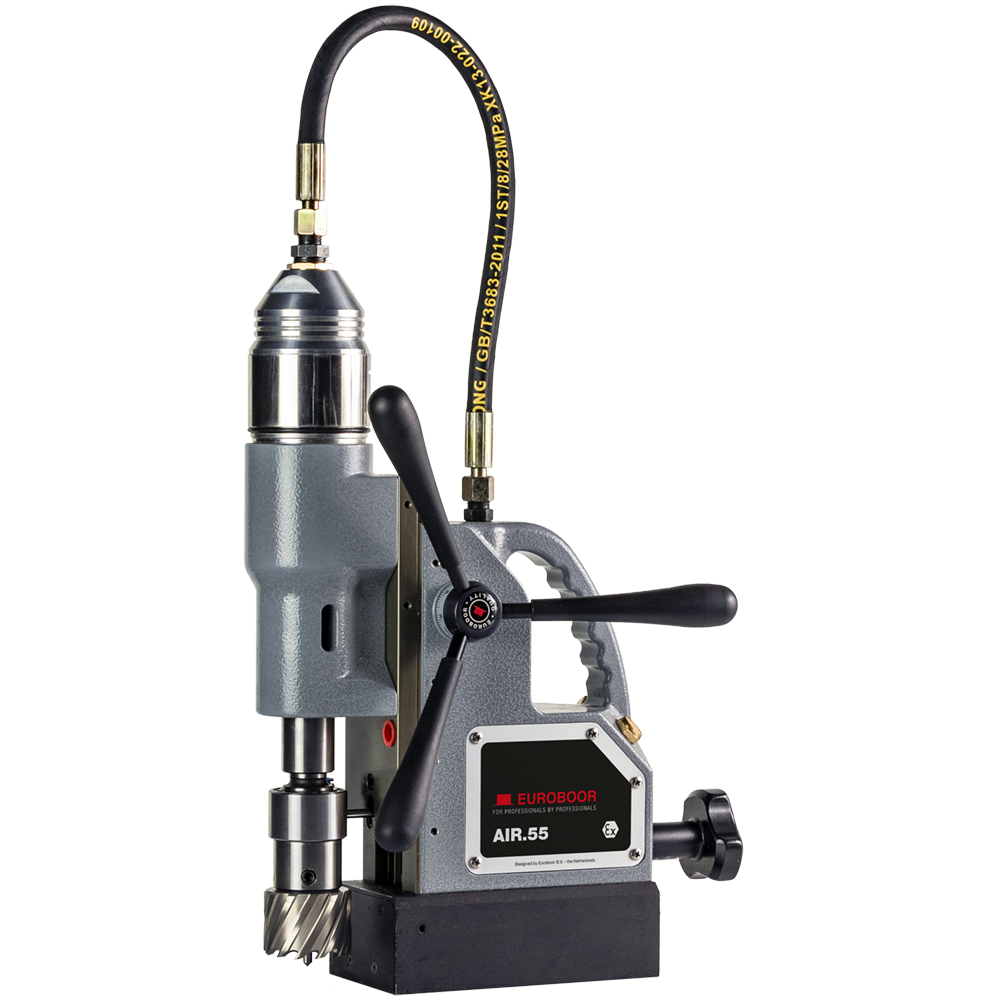

The portable Euroboor AIR.55 pneumatic drilling machine is equipped with an air-powered, spark-free motor and a non-electric, permanent magnet base. Connected to a compressor, it can be used for drilling on flat workpieces where electrical machines are less convenient or not allowed, especially in areas and spaces with potentially explosive atmospheres, such as offshore and petrochemical industries, as well as mining.
Key Characteristics- Single operation knob for magnet and motor with ‘deadman’s’ control
- Also available with permanent tube magnet for both pipe and flat material
- Magnet features
- Permanent, non-electric monobloc magnet system
- No loss of magnetic grip in case of electric power cuts or fluctuations
- Powerful hold, even on thinner steel thicknesses
- 1x metal case
- 1x magnetic drilling machine AIR.55
- 3x (Capstan Hub) handles
- 1x spindle holder MT 3 - 19.05 (3/4"), including cooling/lubrication ring (IMC.30/19-N)
- 1x drift key

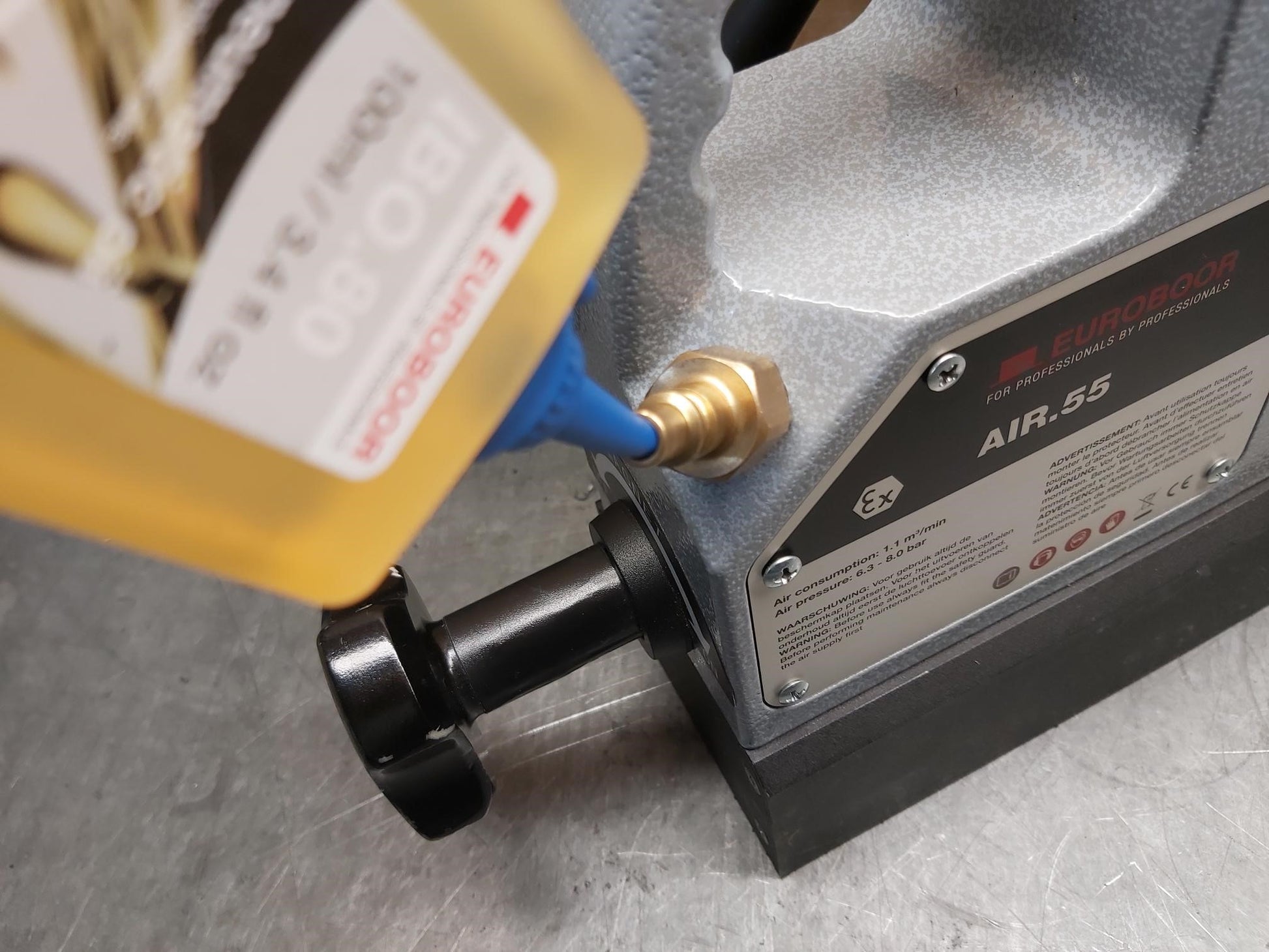

- 1x lubrication/cooling system
- 1x Allen key 2.5 mm (3/32")
- 1x Allen key 4 mm (5/32")
- 1x Allen key 5 mm (13/64")
- 2x open-end spanner 19/22 mm (3/4"-7/8")

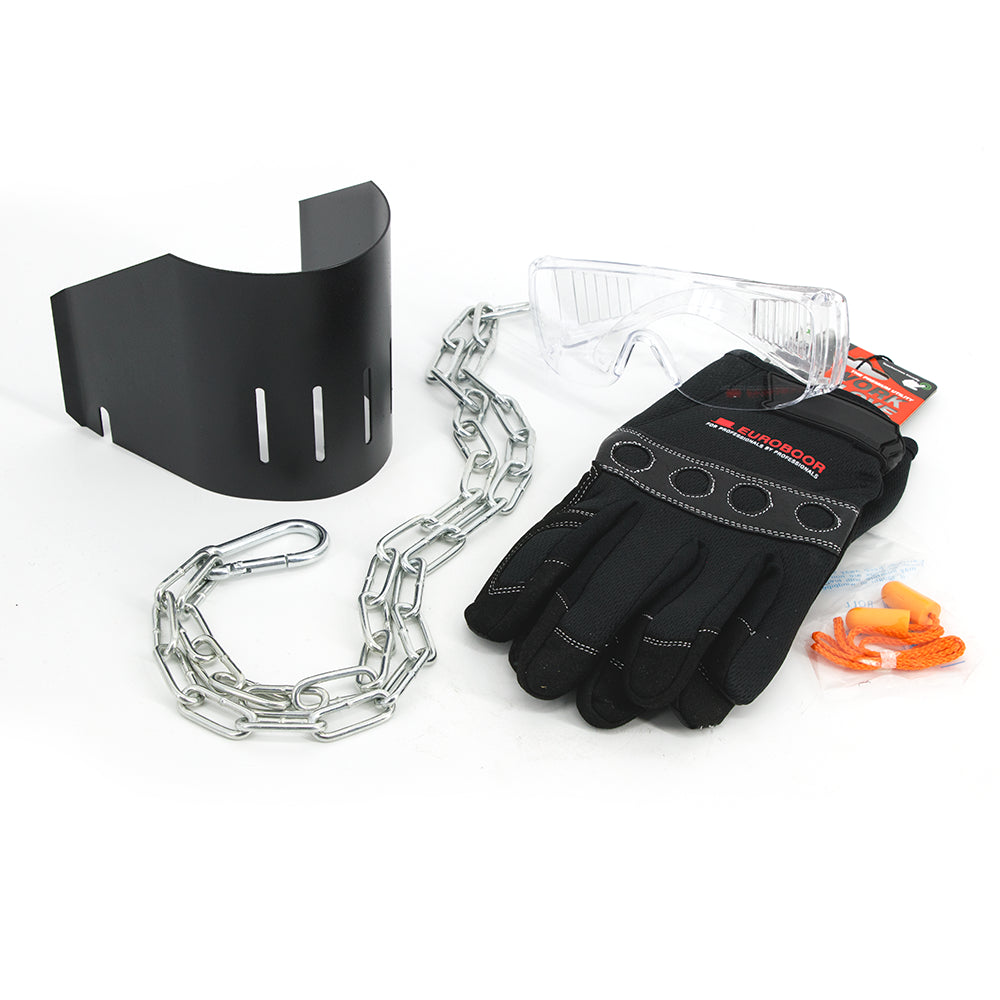

- 1x protection guard
- 1x safety chain
- 1x ear protection
- 1x safety goggles
- 1x safety gloves
- 1x user manual
Properties
Permanent magnet
| Connection | |
|---|---|
| minimum diameter annular cutters (inch) | 7/16 |
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (inch) | 2 3/16 |
| maximum diameter annular cutters (millimeter) | 55 |
| minimum diameter countersinking (inch) | 7/16 |
| minimum diameter countersinking (millimeter) | 12 |
| maximum diameter countersinking (inch) | 2 3/16 |
| maximum diameter countersinking (millimeter) | 55 |
| minimum diameter twist drills (inch) | 1/16 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (inch) | 15/16 |
| maximum diameter twist drills (millimeter) | 23 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 1 size (millimeter) | 19.05 |
| connection 2 morse taper / drill chuck class | MT3 |
| connection 1 type | Weldon |
| connection 2 model | outside |
| connection 2 type | morse taper |
| Dimensions | |
| stroke (inch) | 6 9/16 |
| stroke (millimeter) | 167 |
| magnet length (inch) | 7 3/16 |
| magnet length (millimeter) | 183 |
| magnet width (inch) | 3 15/16 |
| magnet width (millimeter) | 100 |
| magnet height (inch) | 2 3/16 |
| magnet height (millimeter) | 55 |
| minimum height (inch) | 24 3/16 |
| minimum height (millimeter) | 615 |
| maximum height (inch) | 27 3/4 |
| maximum height (millimeter) | 705 |
| length (inch) | 14 15/16 |
| width (inch) | 9 5/8 |
| length (millimeter) | 380 |
| width (millimeter) | 245 |
| height (inch) | 27 3/4 |
| height (millimeter) | 705 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | Grease |
| magnetic force (kilogram) | 900 |
| magnetic force (pound) | 1984 |
| electric rotation speed adjustment | no |
| nett weight (pound) | 36.4 |
| nett weight (kilogram) | 16.5 |
| system of measurement | universal |
| application | Drilling, Countersinking |
| Performance | |
| no-load rotation speed gear 1 (rotations per minute) | 380 |
| Supply | |
| power supply flowrate (cubic meter per hour) | 66 |
| power supply pressure (bar) | 6.3 |
| power supply connection | air hose connection with inside diameter 3/8" |
| power supply source | mains supply |
| power supply type | Pneumatic |
