Product Description

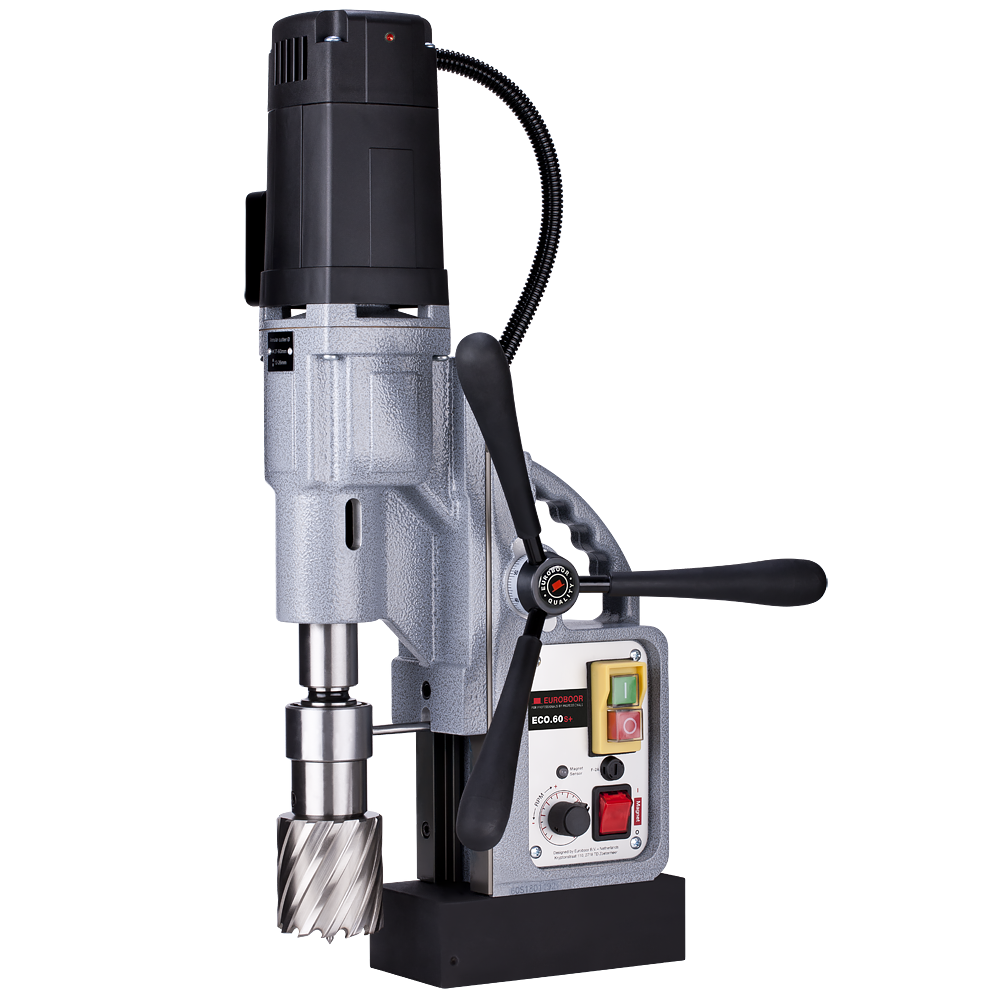

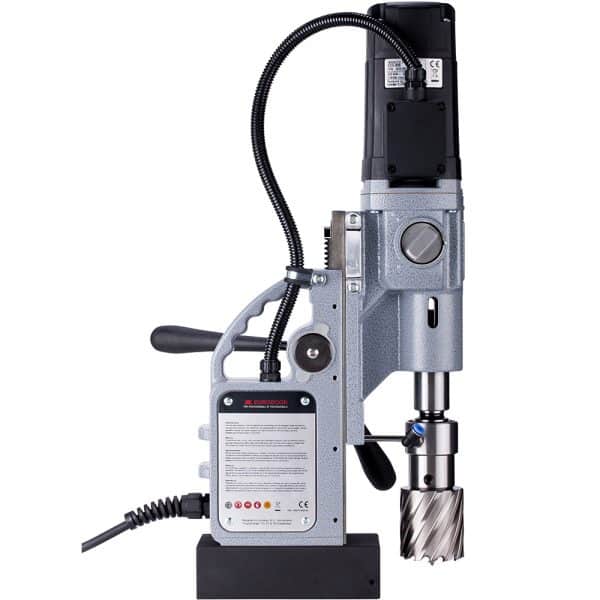

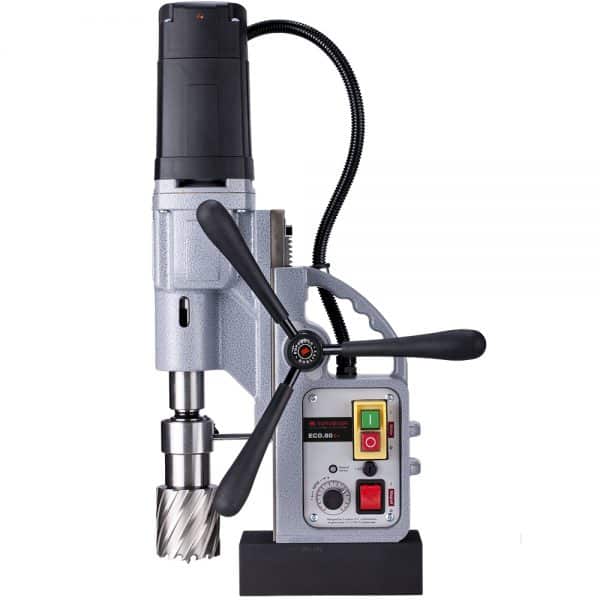

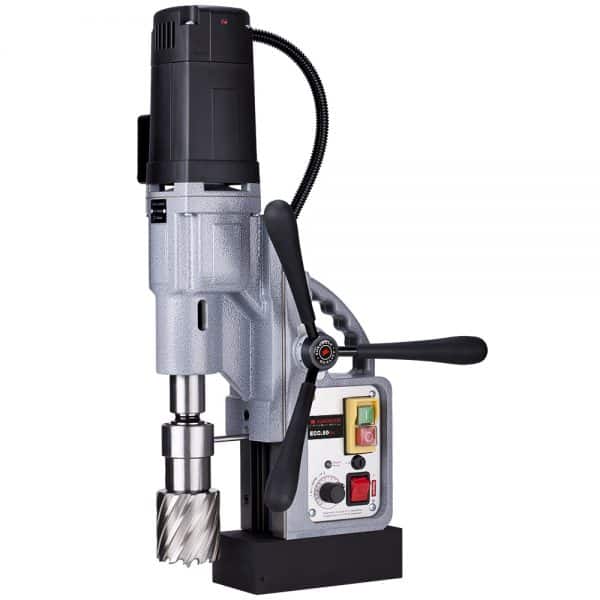

The Euroboor ECO.60S+ magnetic core drilling machine has a powerful 14,5 A motor, an oil lubricated gearbox and overheat protection. This portable magnetic core drilling machine benefits from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs. This light and reliable machine is a true addition for every workplace.
Key Charateristics- Two-speed oil lubricated gearbox
- Electronic speed adjustment
- High-accuracy capstan hub
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- High accuracy
- Extended lifecycle
- Minimal vibration
- High-precision height adjustment
- Low maintenance
- Minimal wear correction
- Overload protection
- Smart Restart technology
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of lesser quality Reduced risk of armature damage
- Reduced risk of control unit(s) damage
- Timely service notification to avoid additional costs by unexpected downtime or unnecessary part replacement
- 1x case
- 1x magnetische boormachine ECO.60S+
- 3x (Capstan Hub) handles
- 1x spindle holder MT 3 - 19.05 (3/4"), including cooling/lubrication ring (IMC.30/19-N)
- 1x drift key
- 1x lubrication/cooling system
- 1x Allen key 2.5 mm (3/32")
- 1x Allen key 4 mm (5/32")
- 1x Allen key 5 mm (13/64")

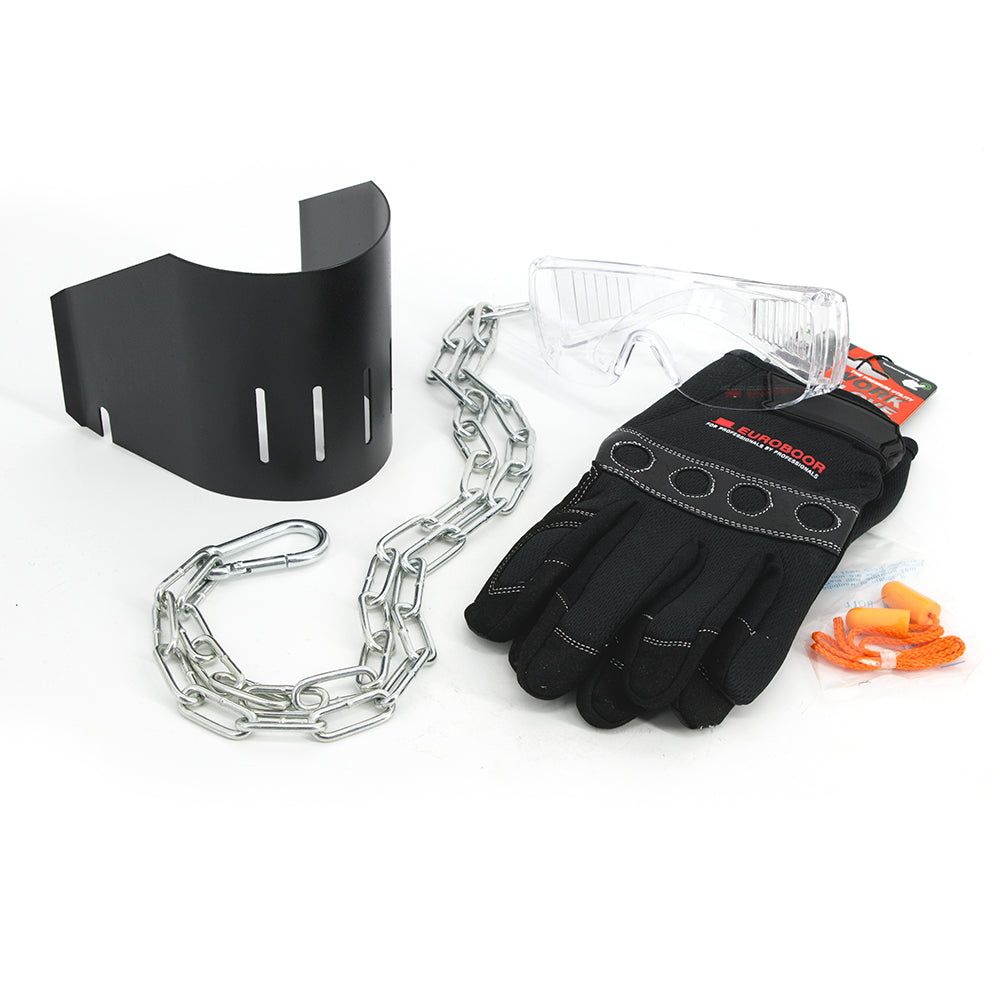

- 1x protection guard
- 1x safety chain
- 1x ear protection
- 1x safety goggles
- 1x safety gloves
- 1x user manual

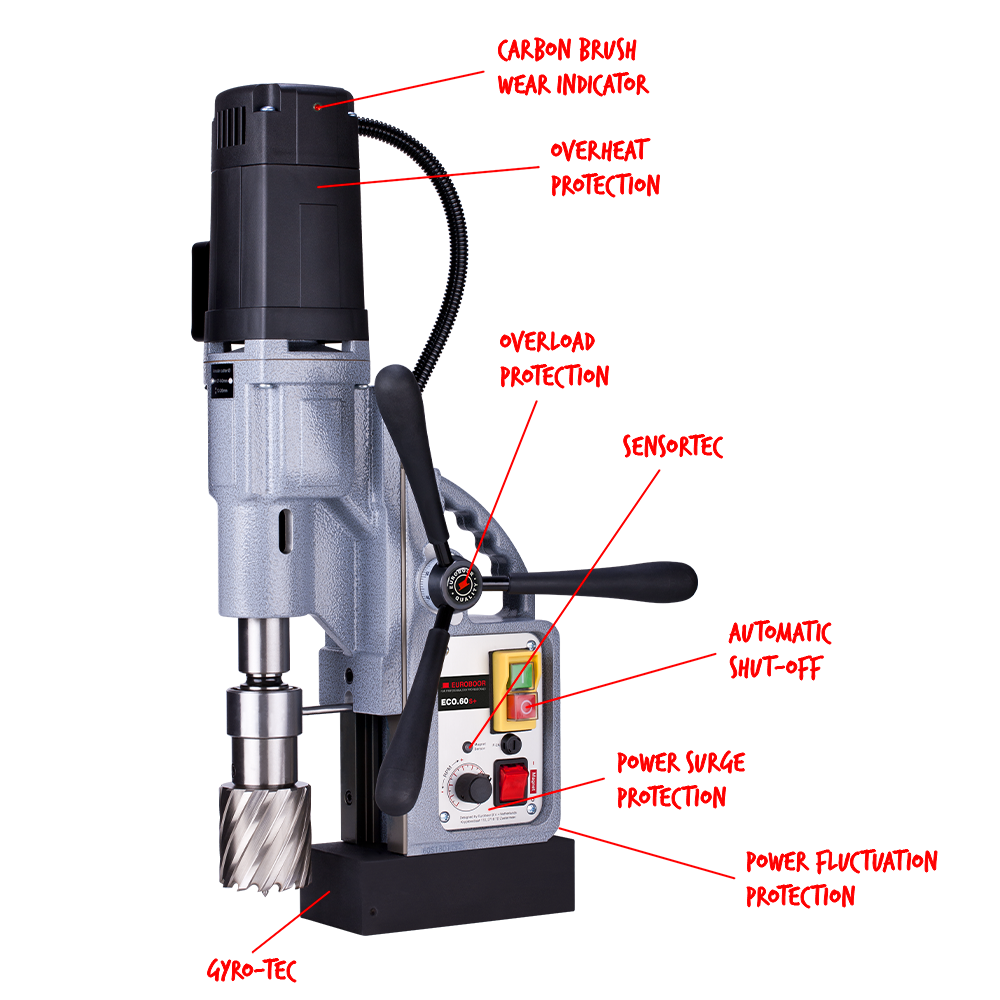

Properties
Automatic shut off
Carbon brush wear indicator
Gyro-Tec
Overload protection
Power fluctuation protection
2 way magnet (TempTec)
Overheat protection
Magnet LED indicator
Power surge protection
Adjustable speed
Oil lubricated gearbox
Smart Restart
| Connection | |
|---|---|
| minimum diameter annular cutters (inch) | 1/2 |
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (inch) | 2 3/8 |
| maximum diameter annular cutters (millimeter) | 60 |
| minimum diameter countersinking (inch) | 3/8 |
| minimum diameter countersinking (millimeter) | 10 |
| maximum diameter countersinking (inch) | 2 9/16 |
| maximum diameter countersinking (millimeter) | 65 |
| minimum diameter twist drills (inch) | 1/16 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (inch) | 15/16 |
| maximum diameter twist drills (millimeter) | 23 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 1 size (millimeter) | 19.05 |
| connection 2 morse taper / drill chuck class | MT3 |
| connection 1 type | Weldon |
| connection 2 model | outside |
| connection 2 type | morse taper |
| Dimensions | |
| stroke (inch) | 6 11/16 |
| stroke (millimeter) | 170 |
| magnet length (inch) | 6 5/8 |
| magnet length (millimeter) | 168 |
| magnet width (inch) | 3 5/16 |
| magnet width (millimeter) | 84 |
| magnet height (inch) | 1 15/16 |
| magnet height (millimeter) | 49 |
| minimum height (inch) | 17 3/16 |
| minimum height (millimeter) | 452 |
| maximum height (inch) | 24 1/2 |
| maximum height (millimeter) | 622 |
| length (inch) | 12 5/8 |
| width (inch) | 7 7/8 |
| length (millimeter) | 320 |
| width (millimeter) | 200 |
| height (inch) | 24 1/2 |
| height (millimeter) | 622 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | Oil |
| magnetic force (kilogram) | 1850 |
| magnetic force (pound) | 4080 |
| electric rotation speed adjustment | yes |
| nett weight (pound) | 28.4 |
| nett weight (kilogram) | 12.9 |
| system of measurement | inch (imperial) |
| application | Drilling, Countersinking |
| Performance | |
| no-load minimum rotation speed gear 1 (rotations per minute) | 60 |
| no-load maximum rotation speed gear 1 (rotations per minute) | 275 |
| load minimum rotation speed gear 1 (rotations per minute) | 60 |
| load maximum rotation speed gear 1 (rotations per minute) | 275 |
| no-load minimum rotation speed gear 2 (rotations per minute) | 100 |
| no-load maximum rotation speed gear 2 (rotations per minute) | 500 |
| load minimum rotation speed gear 2 (rotations per minute) | 100 |
| load maximum rotation speed gear 2 (rotations per minute) | 500 |
| Supply | |
| motor power (Ampère) | 14.5 |
| motor power (Watt) | 1600 |
| total power (Ampère) | 15.5 |
| total power (Watt) | 1700 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
