Product Description

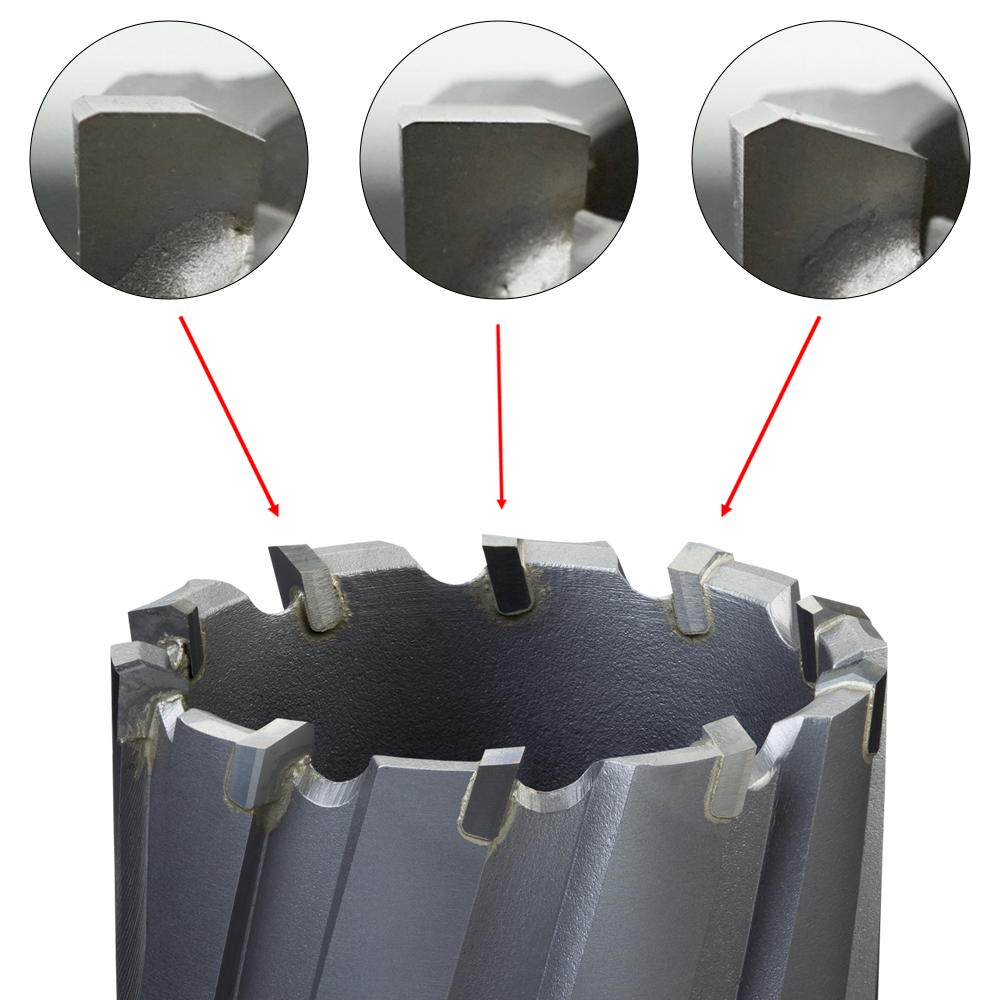

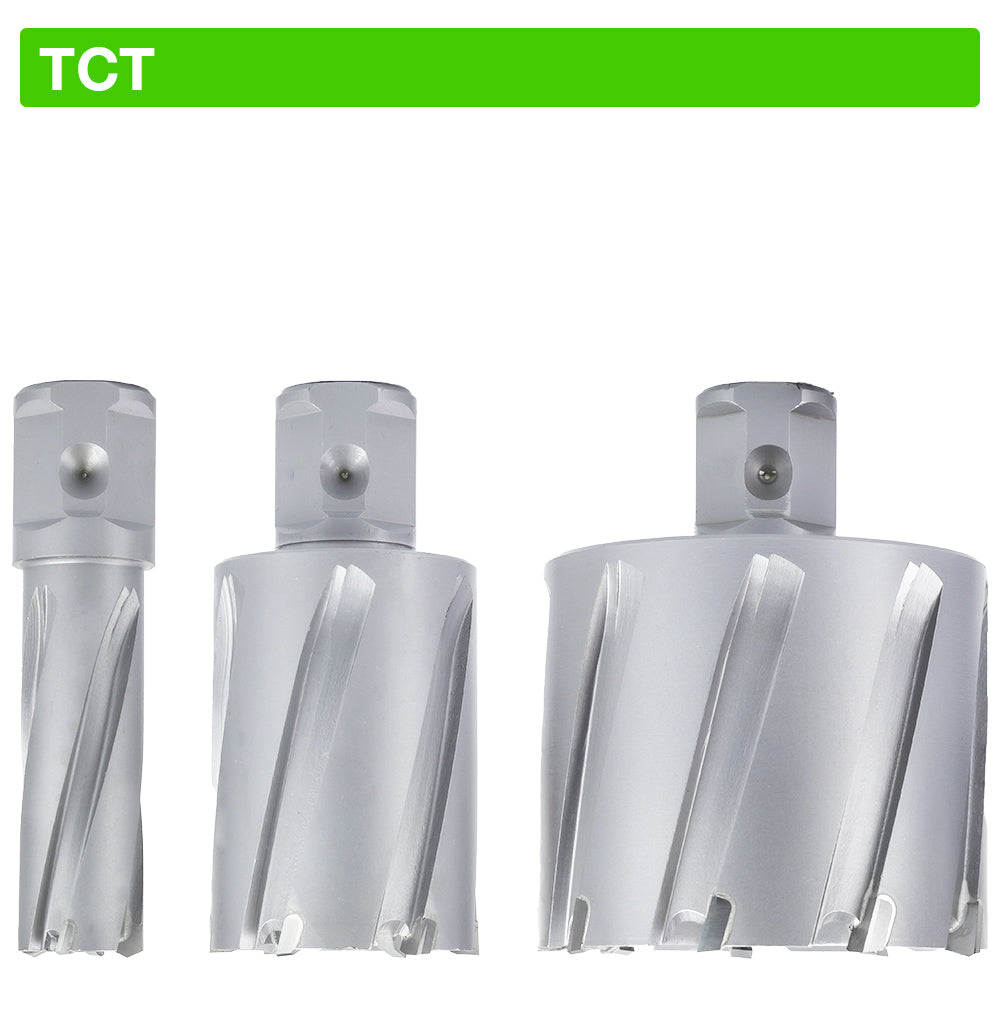

Euroboor Tungsten Carbide Tipped Annular Cutters 6? with a drill depth of 6? are equipped with a spiral flute which creates optimum chip removal and makes seizure next to impossible. These carbide cutting tools are used to drill in hardened materials such as HARDOX steel, stainless steels and high tensile strength steel such as railway tracks. Because of their composition, and when used in a proper way, these TCT cutting tools – 6? are less susceptible to breakage than High Speed Steel Cutters, especially in larger diameters and lengths.

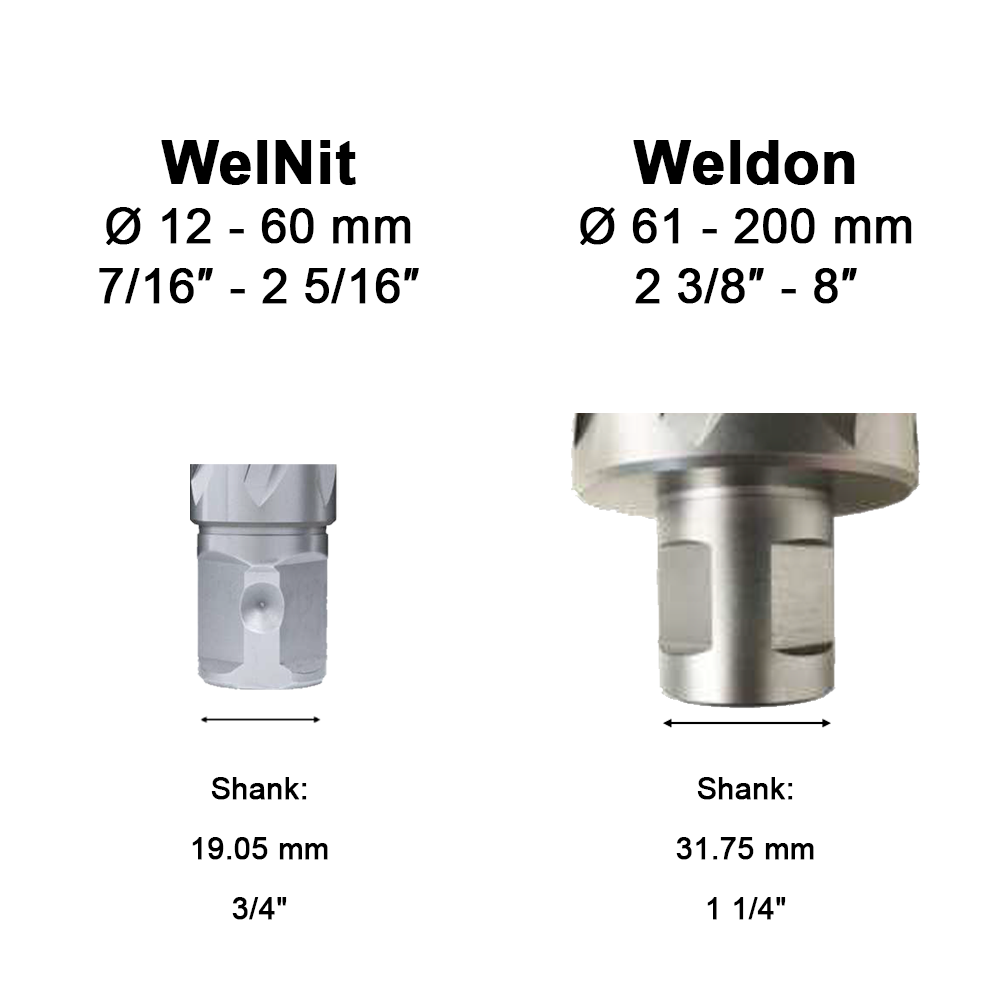

Annular cutters with diameter 7/16? to 2-5/16? are available in 3/4? WelNit* or Weldon shank.
Annular cutters with diameter 2-3/8? and up have a 1-1/4? Weldon shank.
* A WelNit shank is a 2-in-1 shank that fits perfectly in almost every machine. WelNit shanks have 2 flats and 3 dimples which provide an extra secure and super tight fit.
Properties
| Connection | |
|---|---|
| connection 1 model | outside |
| connection 1 size (inch) | 1 1/4, 3/4 |
| connection 1 size (millimeter) | 19.05, 31.75 |
| connection 1 type | Weldon, WelNit |
| Dimensions | |
| diameter pilot pin hole (inch) | 1/4, 5/16 |
| diameter pilot pin hole (millimeter) | 6.35, 8.00 |
| outside / maximum diameter (inch) | See table |
| outside / maximum diameter (millimeter) | See table |
| cutting depth (inch) | 6 |
| cutting depth (millimeter) | 150 |
| Properties | |
| material | tungsten carbide tipped |
| system of measurement | inch (imperial) |
| application | Drilling |
