category:
Valves
manufacturer:
White Rodgers
mpn:
097722
subcategory:
Stepper Motor Driven Valves
Product Description

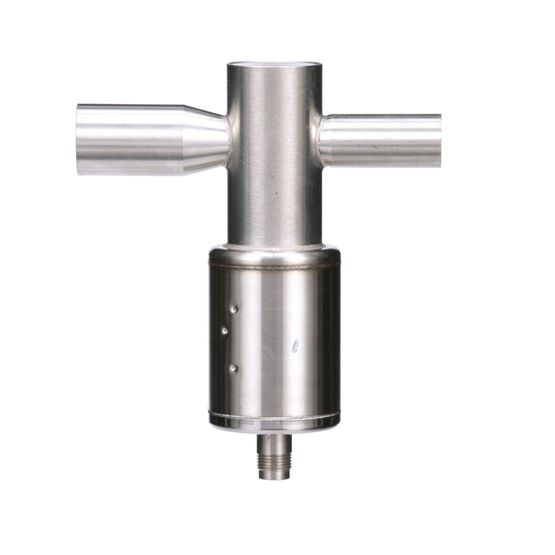

White Rodgers - 097722 The EX4-EX8 are stepper motor driven valves that are optimized for the control of liquid or gaseous mass flow in refrigeration systems.. Multifunction capability as expansion valve, hot gas bypass, suction gas throttling, head pressure, liquid line actuator and other applications systems..
Features:
- Fully hermetic design
- Fast full stroke time
- Applicable to all common refrigerants (HCFC, HFC), for subcritical R-744 applications
- High resolution and excellent repeatability
- Bi-directional versions for heat pump applications
- Positive shut-off function to eliminate the use of an additional solenoid valve
- Linear flow capacity
- Wide capacity range (10 - 100%)
- Continuous modulation of mass flow, no stress (liquid hammering) in the refrigeration circuit
- Direct coupling of motor and valve for high reliability (no gear mechanism)
Additional Information
Inlet Connection SizeEX4-EX7 870 psig, EX8: 650 psig
Outlet Connection Size1-3/8
Maximum Working PressureEX4-EX7 870 psig, EX8: 650 psig
MOPDEX4-EX6 580 psid, EX7 507 psid, EX8 435 psid
Ambient Operating Temperature-40°F to +130°F
Operating Humidity5 to 95% R.H.
Connectors4 pin terminal via plug
Bi-directionalNo
Capacities in Tons R-22 (10% - 100%)10 - 93.8
Capacities in Tons R-23 (10% - 100%)N/A
Capacities in Tons R-124 (10% - 100%)N/A
Capacities in Tons R-134a (10% - 100%)7.1 - 72.5
Capacities in Tons R-404A (10% - 100%)7.1 - 65.4
Capacities in Tons R-407C (10% - 100%)10 - 98.7
Capacities in Tons R-410A (10% - 100%)11.4 - 109.5
Capacities in Tons R-744 (10% - 100%)19.9 - 190.5
European Number800624
External Leakage0.1 oz./yr. (R-22)
Input Voltage RangeDriver at 24 Vdc Nominal, Range: 18-36 Vdc
Operating CurrentEX4-EX6, 500 mA max, EX7 750 mA, EX8 800 mA
