category:
Electric Motors
height:
3.63
length:
11.5
manufacturer:
Century
mpn:
K100
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
1
width:
9.25

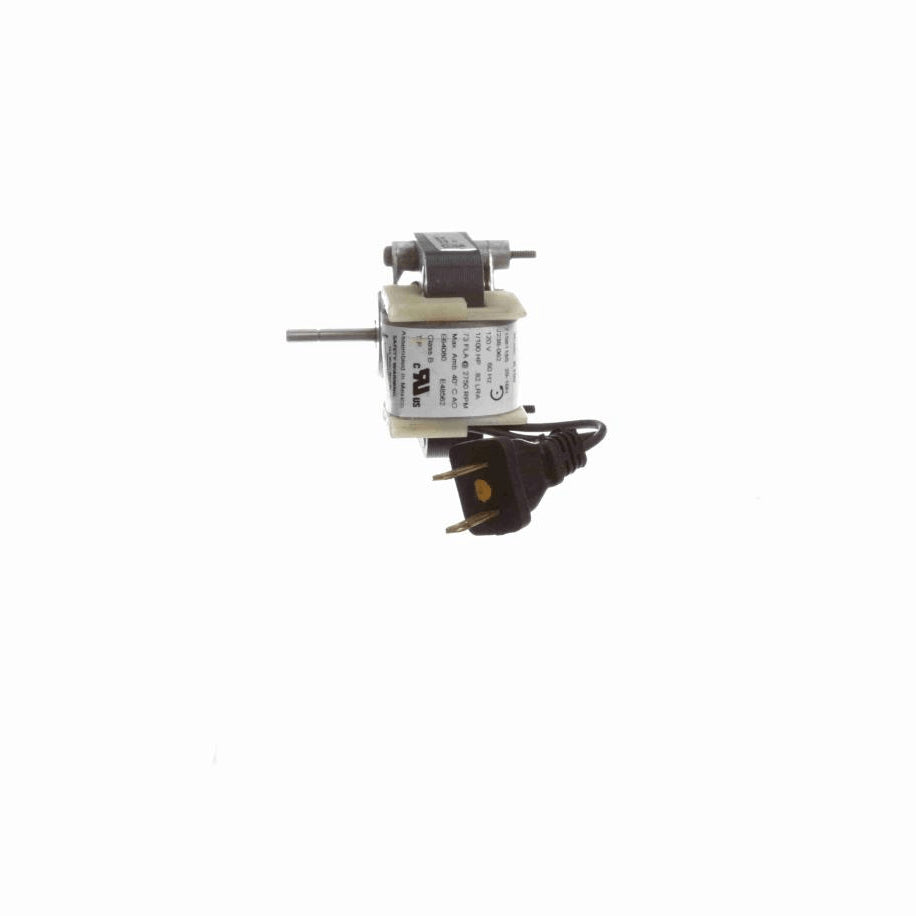

Product Overview
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .1811" Diameter Shaft
- 4.75"/3.75" Leads with Molded Plug
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed2750 rpm
Current.73 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight1.00 LB
Country Of originMexico
Output HP1/100 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeGroove
Shaft Diameter0.181 in
Shaft Extension1.05 in
CEN
Starting MethodAcross The Line
