category:
Electric Motors
height:
3.31
length:
3.1
manufacturer:
Century
mpn:
K1323
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
1.93
width:
5.25

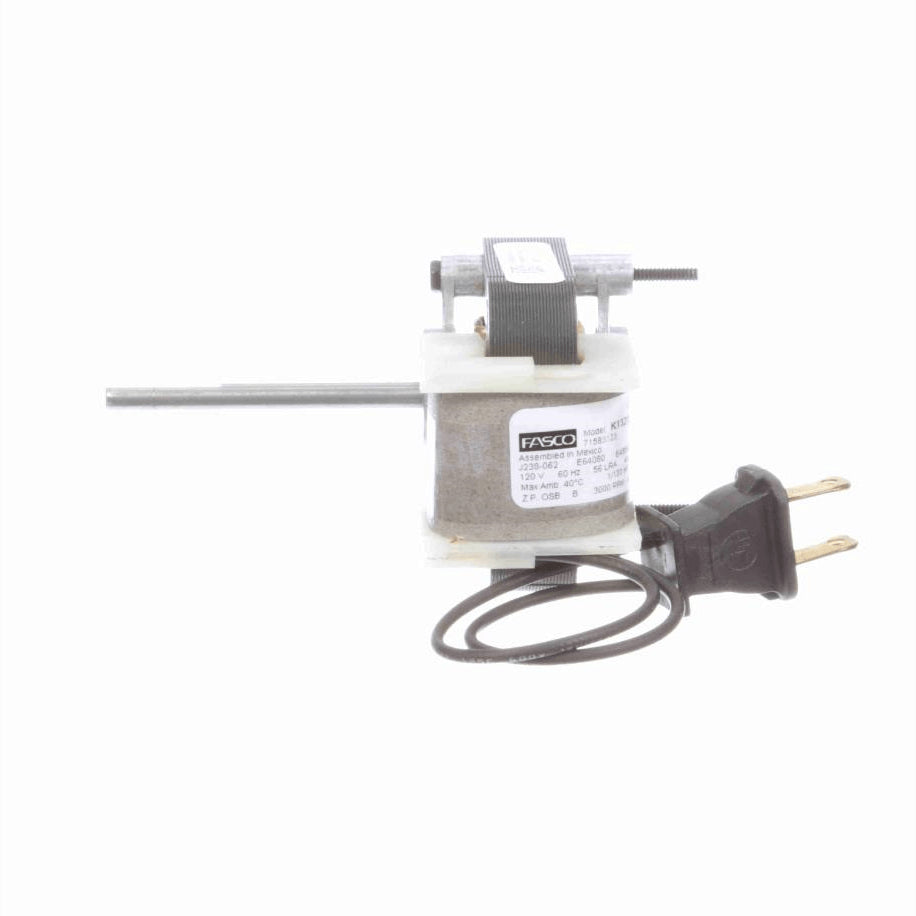

Product Overview
- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Impedance Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .217" Diameter Shaft with Flat
- 7" Leads with Molded Plug
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionImpedance
Speed3000 rpm
Current.46 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight1.93 LB
Country Of originMexico
Output HP1/130 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length1.64 in
Shaft Diameter0.217 in
Shaft Extension2.457 in
CEN
Starting MethodAcross The Line
