category:
Electric Motors
height:
3.63
length:
11.5
manufacturer:
Century
mpn:
K101
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.18
width:
9.25

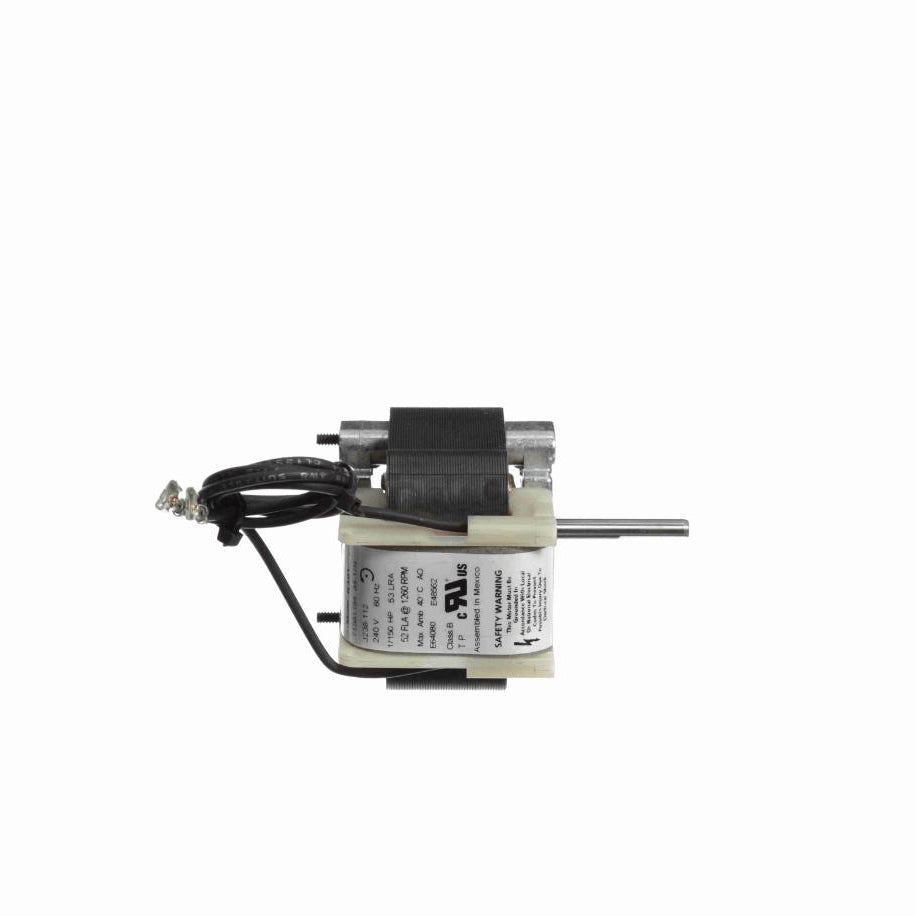

Product Overview
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .2178" Diameter Shaft with Flat
- 12.5"/11.5" Leads with Spade Terminal
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1260 rpm
Current.52 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight2.18 LB
Country Of originMexico
Output HP1/150 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.218 in
Shaft Extension1.34 in
HTC8501.10.4020
CEN
Starting MethodAcross The Line
