category:
Electric Motors
height:
5.25
length:
6.38
manufacturer:
Century
mpn:
K1574
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
1.6
width:
5.69
Product Overview

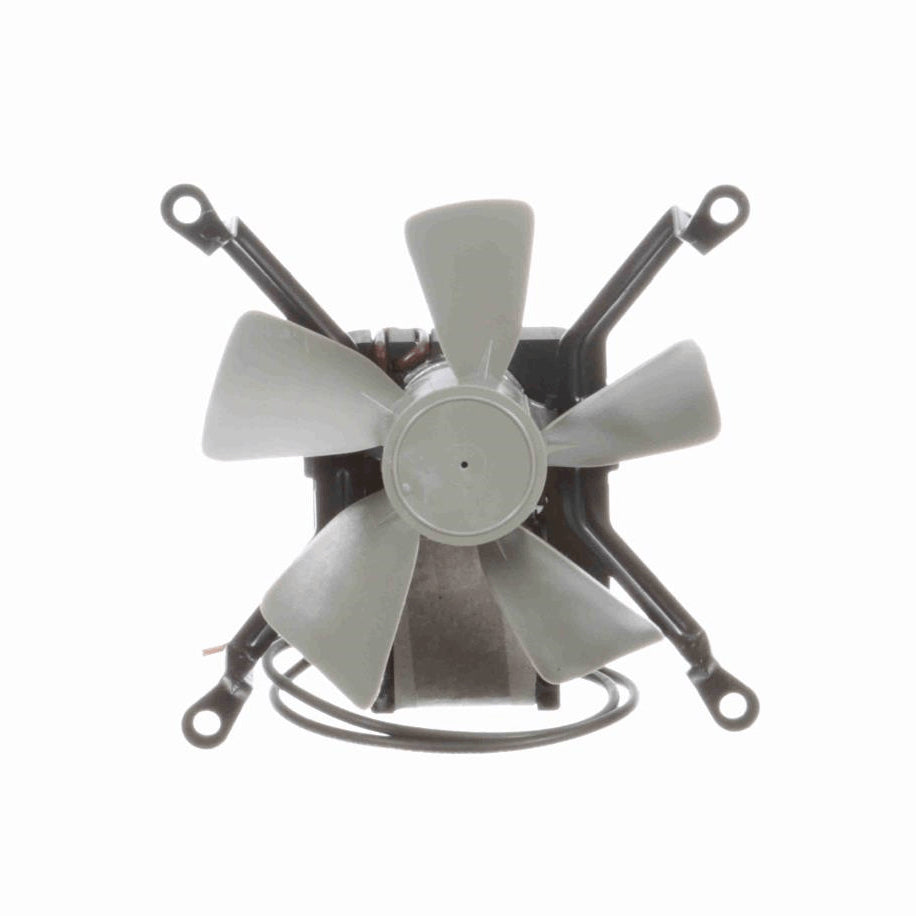

- Fireplace Fan Motor
- C-Frame
- Shaded Pole
- Impedance Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- Shaft with Mounted Fan Blade
- 11" Leads
- Mounting Bracket Shaft End
Additional Information
Thermal ProtectionImpedance
Speed3000 rpm
Current0.43 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight1.60 LB
Country Of originMexico
Output HP1/240 Hp
Output KW0.00 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingBracket
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeSpecial Extension
Frame Length1.39 in
Shaft Diameter0.181 in
Shaft Extension0.95 in
CEN
Starting MethodAcross The Line
