category:
Electric Motors
height:
3.63
length:
11.5
manufacturer:
Century
mpn:
K112
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.1
width:
9.25

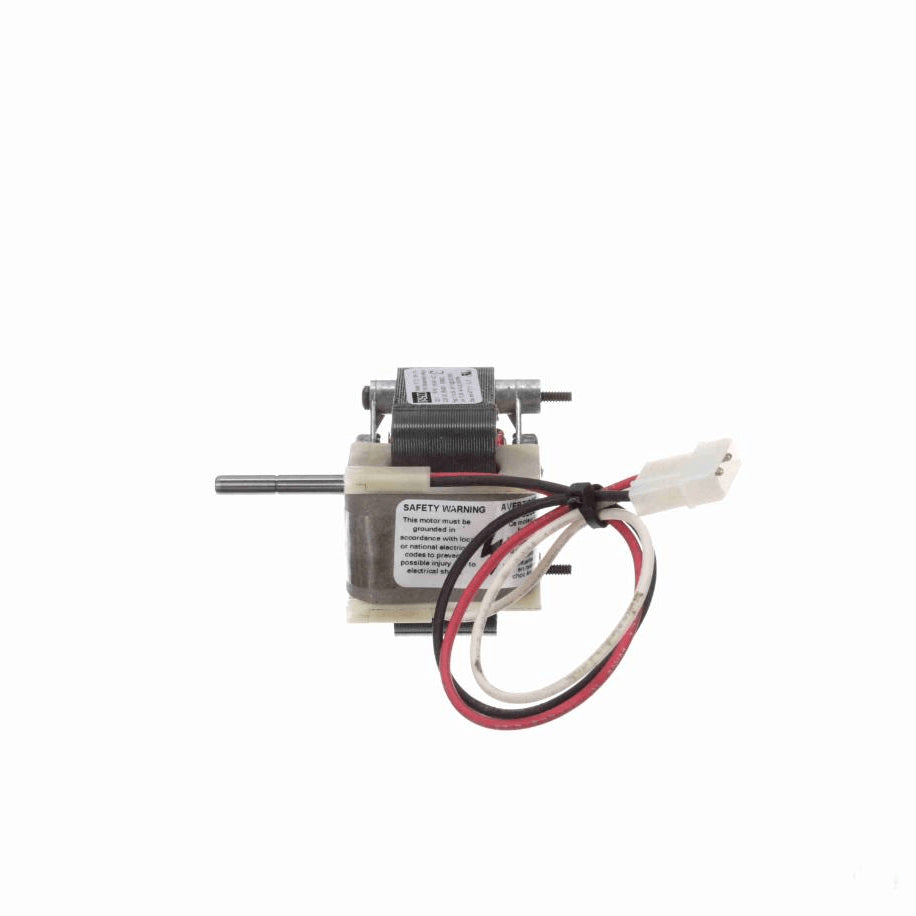

Product Overview
- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .1811" Diameter Shaft
- 4.75"/3.75" Leads with Molded Plug
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current.86/.44 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight2.10 LB
Country Of originMexico
Output HP1/50 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat & Groove
Shaft Diameter0.218 in
Shaft Extension1.44 in
HTC8501.10.4020
CEN
Starting MethodAcross The Line
