category:
Electric Motors
height:
3.63
length:
11.5
manufacturer:
Century
mpn:
K610
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
1.93
width:
9.25
Product Description

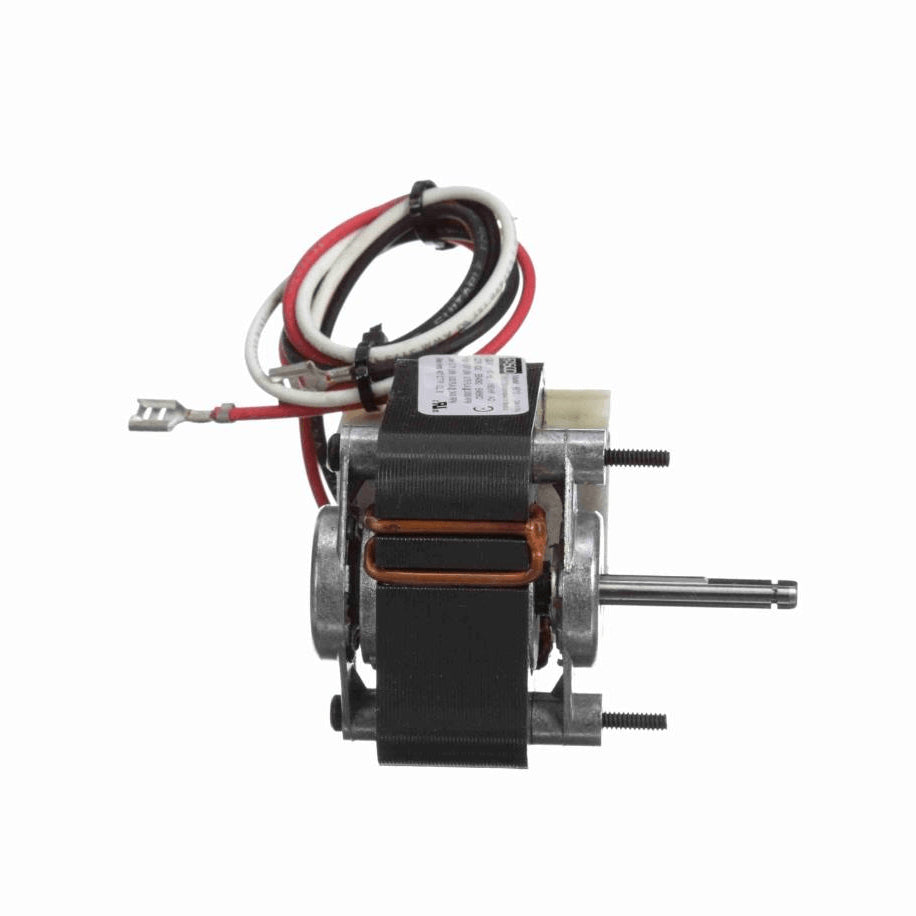

Century - K610
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .2178" Diameter Shaft with Flat
- (1) 16"/14" Lead with .5" Strip, (1) 18"/16" Lead with Spade Terminal, (1) 20"/18" Lead with Spade Teminal
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current0.75-0.63 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight1.93 LB
Country Of originMexico
Output HP1/60 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat Groove
Shaft Diameter0.218 in
Shaft Extension1.33 in
CEN
Starting MethodAcross The Line
