category:
Electric Motors
height:
3.63
length:
11.5
manufacturer:
Century
mpn:
K109
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
1.5
width:
9.25

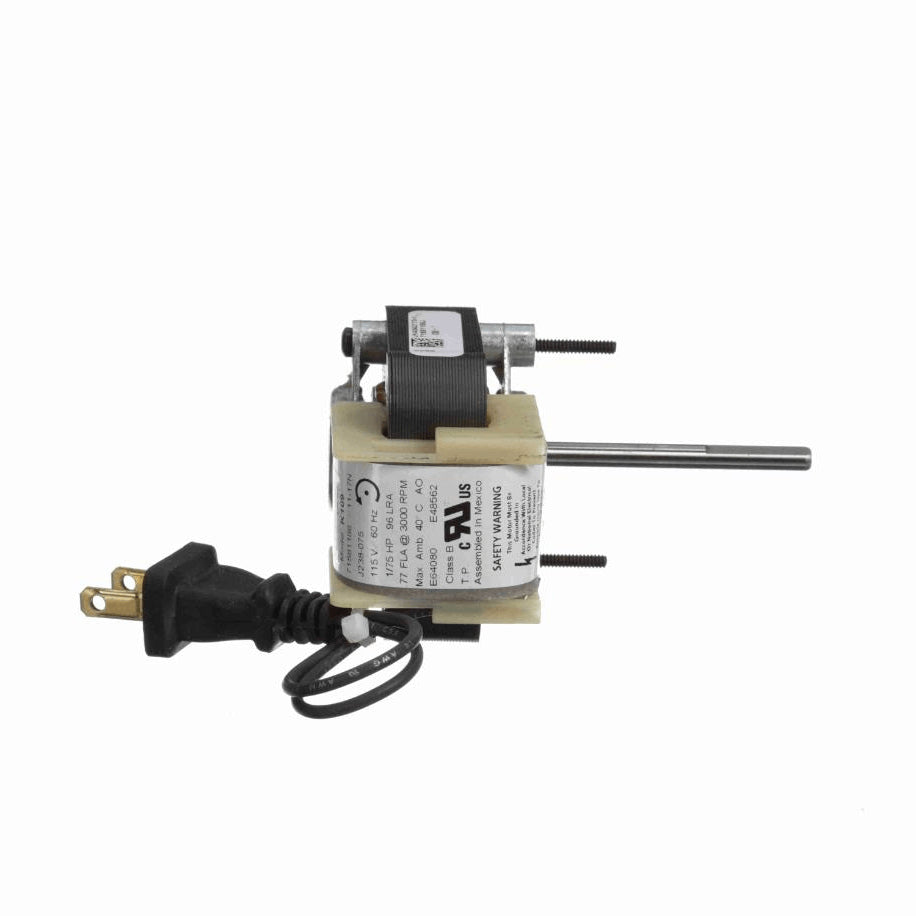

Product Overview
- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .2178" Diameter Shaft with Flat
- 6.0"/5.0" Leads with Molded Plug
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current.77 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight1.50 LB
Country Of originMexico
Output HP1/75 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.218 in
Shaft Extension2.37 in
CEN
Starting MethodAcross The Line
