category:
Electric Motors
height:
4
length:
4.25
manufacturer:
Century
mpn:
UB586
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7.8
width:
4.5
Product Description

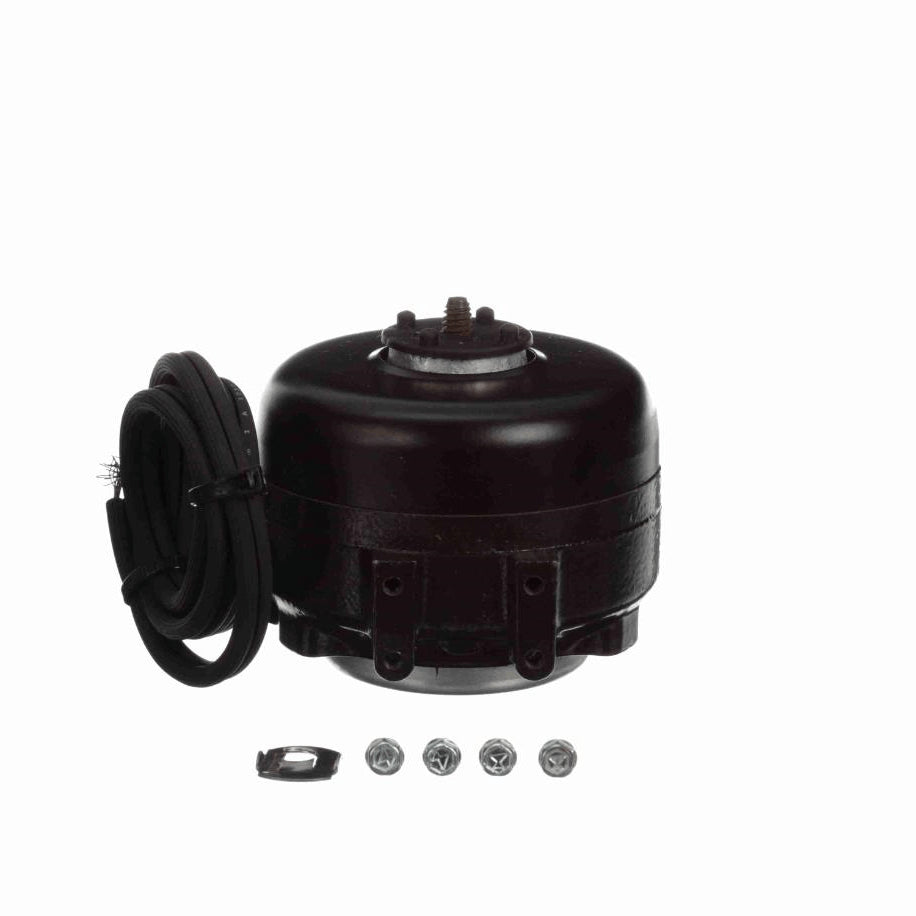

Century - UB586
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Impedance Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 28" Leads with .05" Strip
- 2 Mounting Feet, 3 Rear Mounting Holes
Additional Information
Thermal ProtectionImpedance
Speed1300 rpm
Current0.08 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight7.80 LB
Country Of originChina
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeShaded Pole
Poles4
RotationClockwise Opposite Shaft End
Mounting2 BOSS/OSE 3 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeThreaded
Frame Length2.87 in
Shaft Diameter1/4x20 in
Shaft Extension.415 in
Output Watts2.3 W
CEN
Starting MethodAcross The Line
