category:
Electric Motors
height:
3.88
length:
5.25
manufacturer:
Century
mpn:
UB577
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.35
width:
3.88
Product Description

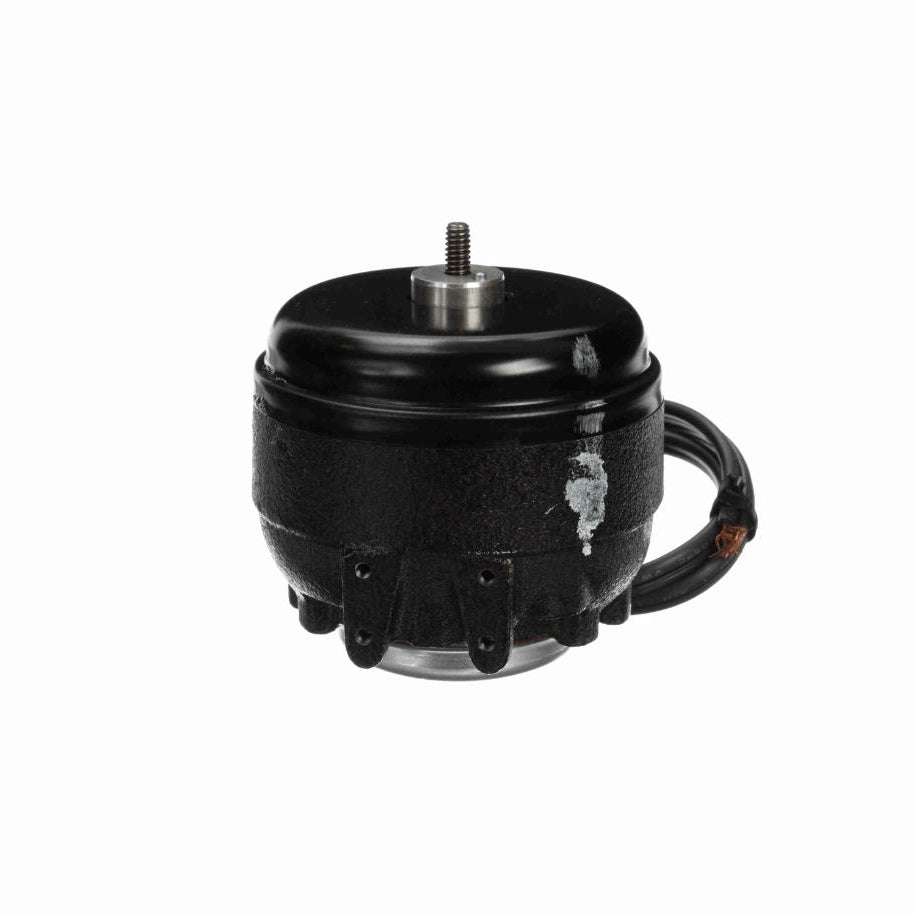

Century - UB577
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 22" Leads
- 2 Mounting Feet, 3 Rear Mounting Holes
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current0.7 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight4.35 LB
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Opposite Shaft End
Mounting2 BOSS/OSE 3 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeThreaded
Frame Length3.84 in
Shaft Diameter1/4x20 in
Shaft Extension.52 in
Output Watts35 W
CEN
Starting MethodAcross The Line
