category:
Electric Motors
height:
3.88
length:
7
manufacturer:
Century
mpn:
UB578
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6.08
width:
3.88

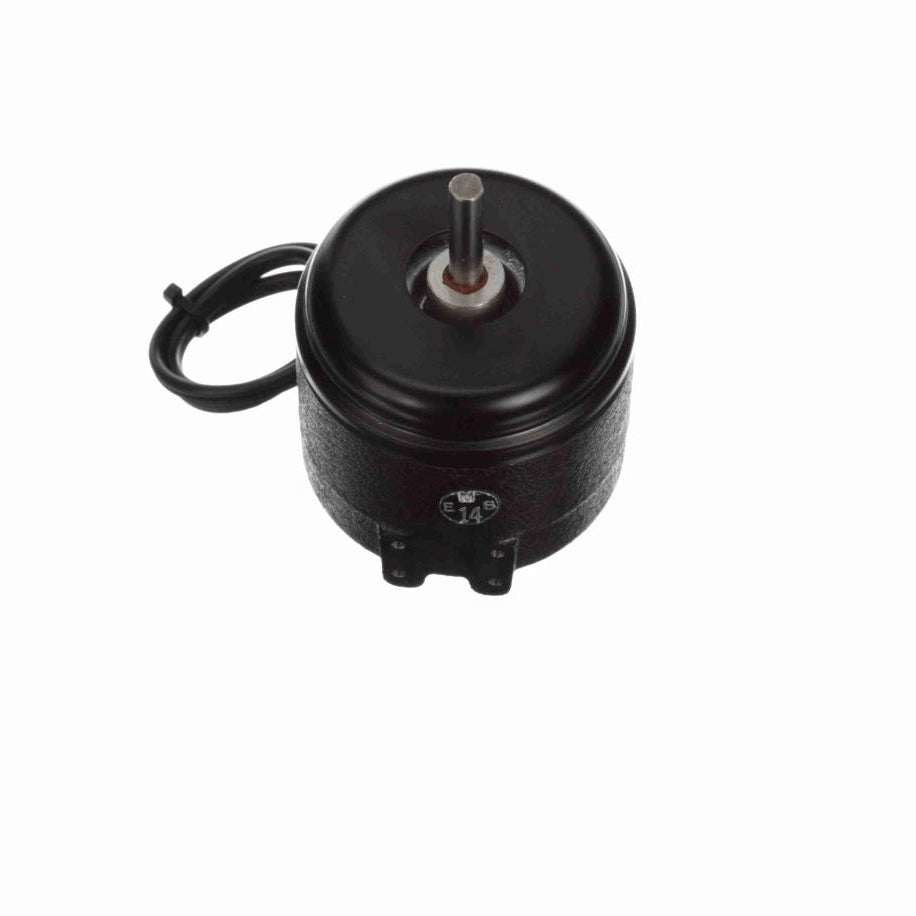

Product Overview
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 3/8" Diameter Shaft with Flat
- 22" Leads
- 2 Mounting Feet, 3 Rear Mounting Holes
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current1.7 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight6.08 LB
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeShaded Pole
Poles4
RotationClockwise Opposite Shaft End
Mounting2 BOSS/OSE 3 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeFlat
Frame Length4.79 in
Shaft Diameter0.375 in
Shaft Extension1.55 in
Output Watts50 W
CEN
Starting MethodAcross The Line
