category:
Electric Motors
height:
4.2
length:
4
manufacturer:
Century
mpn:
UB563
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.25
width:
4.3

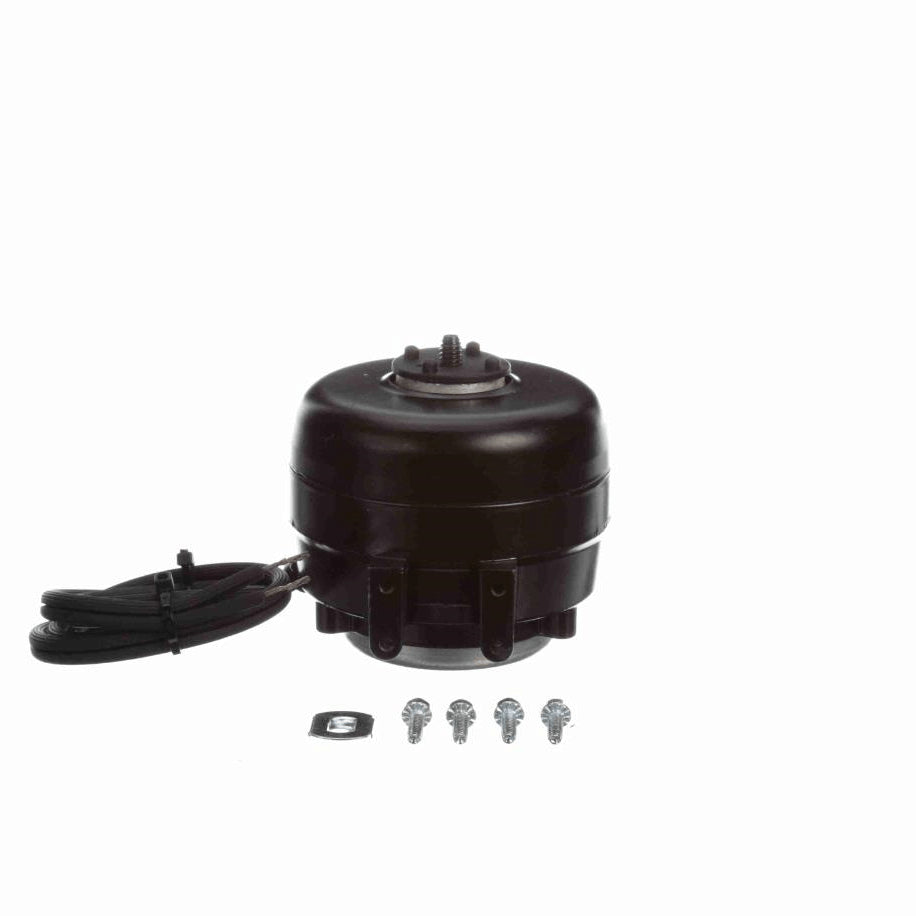

Product Overview
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 28" Leads with .05" Strip
- 2 Mounting Feet, 5 Rear Mounting Holes
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current0.53 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.25 LB
Country Of originChina
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Opposite Shaft End
Mounting2 BOSS/OSE 5 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialAluminum
Shaft TypeThreaded
Frame Length3.12 in
Shaft Diameter1/4x20 in
Shaft Extension.415 in
Output Watts9 W
CEN
Starting MethodAcross The Line
