category:
Electric Motors
height:
10
length:
6.5
manufacturer:
Century
mpn:
D497
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8.4
width:
5.13

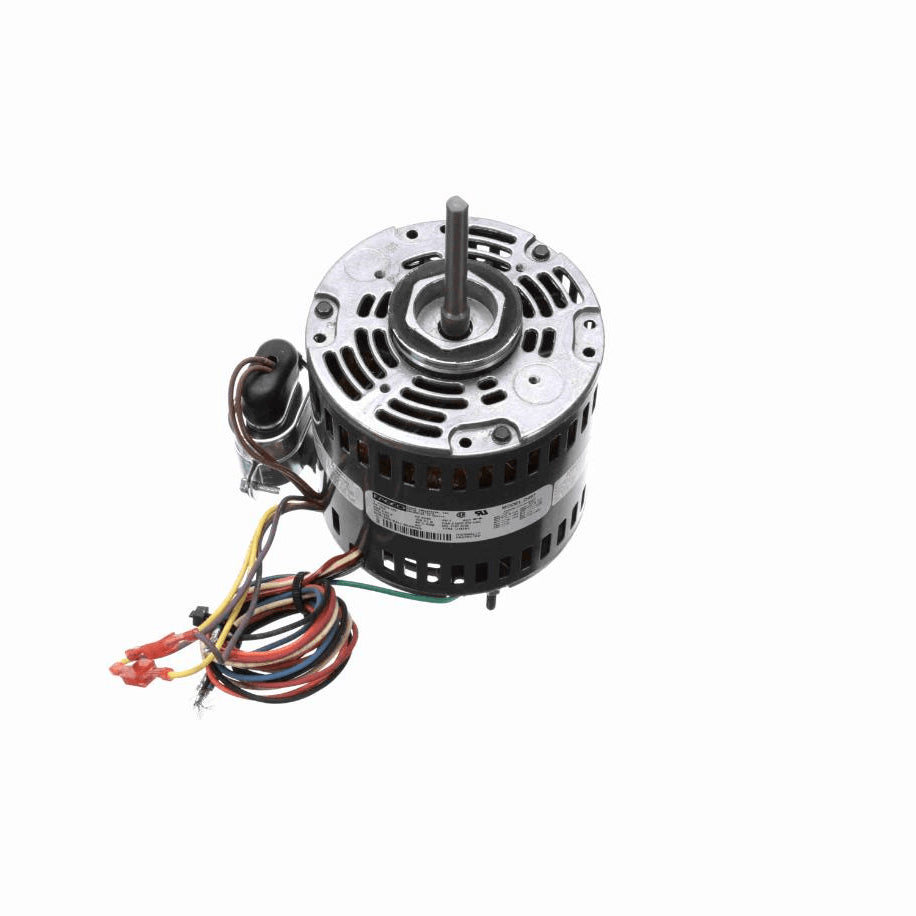

Product Overview
- Condenser Fan - Heat Pump Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Opposite Shaft End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current2.0/1.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.40 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.38 in
Shaft Diameter0.375 in
Shaft Extension3.15 in
CEN
Starting MethodAcross The Line
