category:
Electric Motors
height:
15
length:
6.31
manufacturer:
Century
mpn:
D474
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9.2
width:
6.13

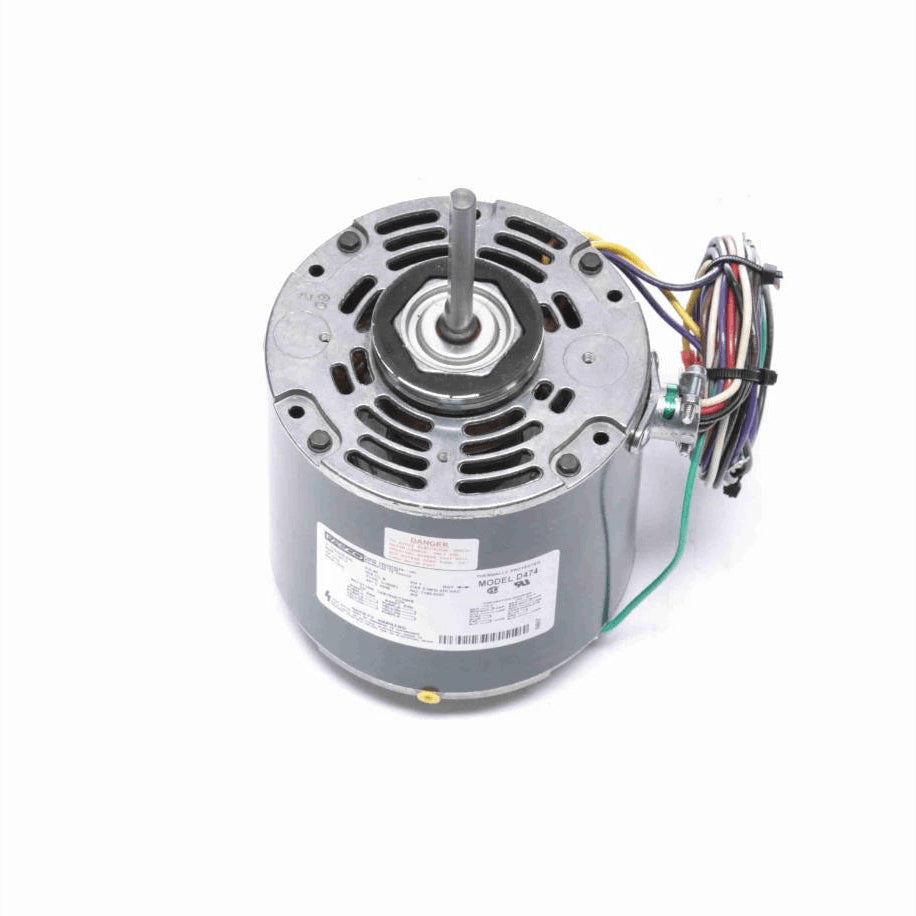

Product Overview
- Condenser Fan - Heat Pump Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Shell Totally Enclosed, Shaft End and Opposite Shaft End Frame Open, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1.9/1.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.20 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.38 in
Shaft Diameter0.375 in
Shaft Extension3.25 in
CEN
Starting MethodAcross The Line
