category:
Electric Motors
height:
10
length:
6.5
manufacturer:
Century
mpn:
D486
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7.4
width:
5.13
Product Overview

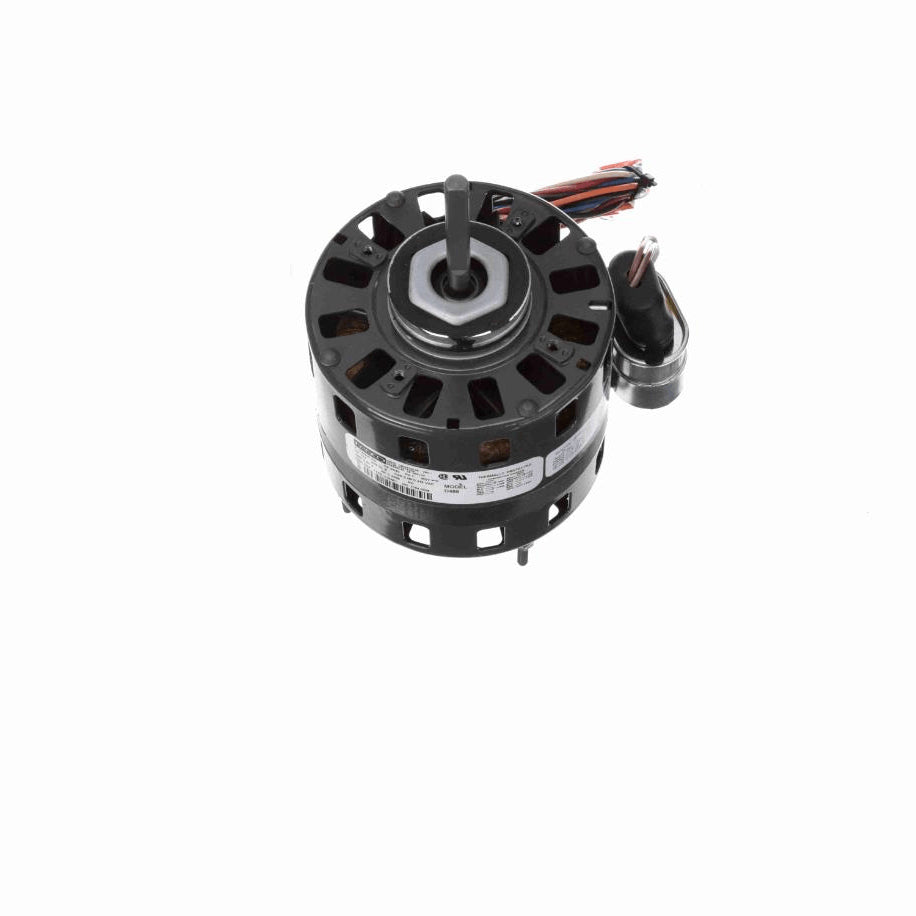

- Condenser Fan - Heat Pump Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Opposite Shaft End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current2.5/1.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight7.40 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Rings
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3.15 in
CEN
Starting MethodAcross The Line
