category:
Electric Motors
height:
3.38
length:
17
manufacturer:
Century
mpn:
D366
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.2
width:
3.38
Product Overview

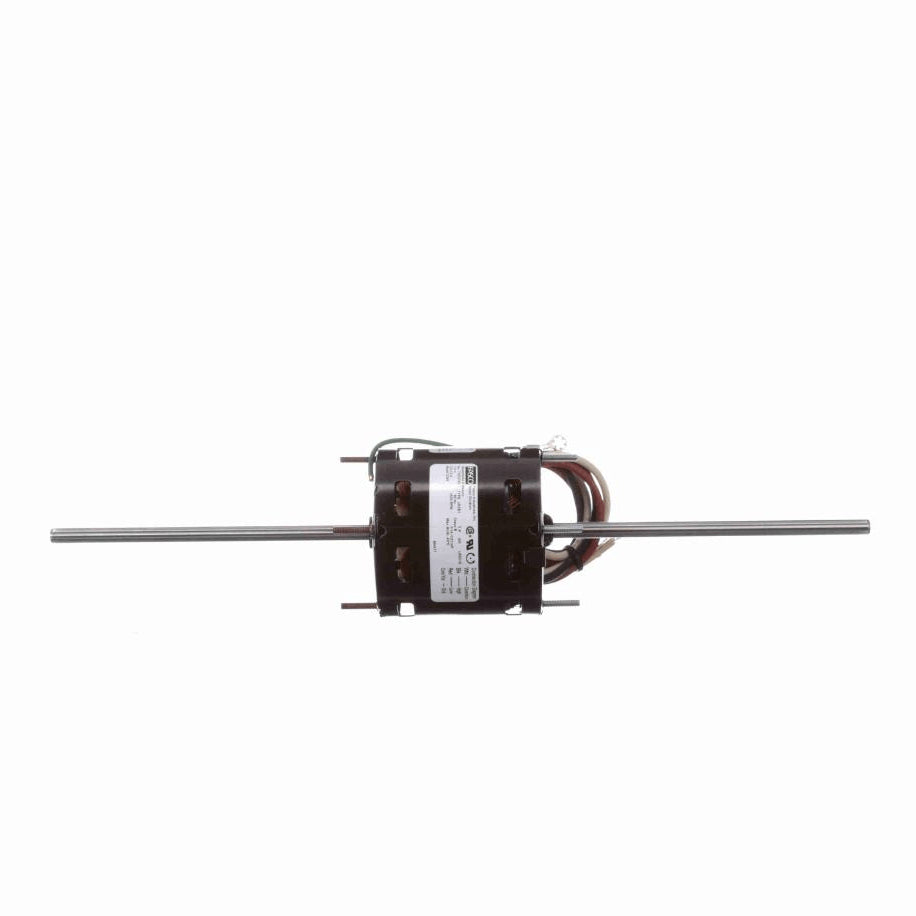

- Window Air-Conditioning Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 15" Leads
- Extended Studs Lead and Opposite Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current2.50/1.50 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.20 LB
Country Of originMexico
Output HP1/14-1/21 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.01 in
Shaft Diameter0.313 in
Shaft Extension6.375 in
CEN
Starting MethodAcross The Line
