category:
Electric Motors
height:
5.63
length:
15
manufacturer:
Century
mpn:
D7745
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15.4
width:
5.63

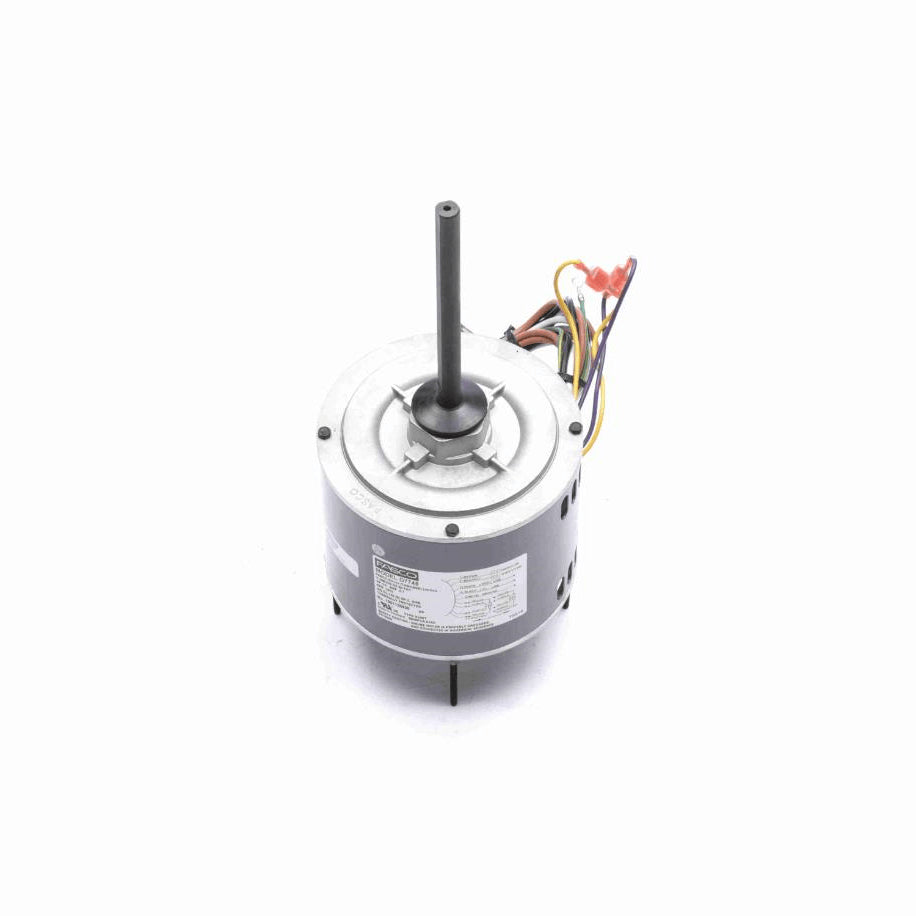

Product Overview
- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End, Shell Half Vented, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.7 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.40 LB
Country Of originThailand
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Drip Proof
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.69 in
Shaft Diameter0.500 in
Shaft Extension6.5 in
CEN
Starting MethodAcross The Line
